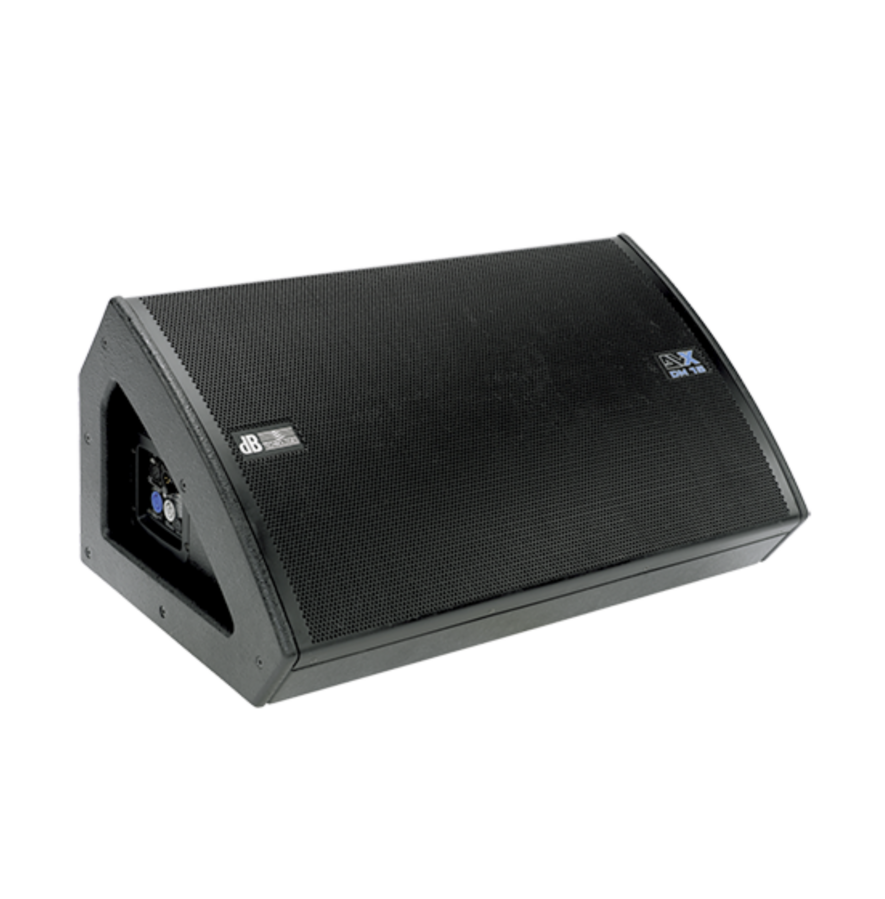

Description
Paired with high-output digipro digital power amps in a bi-amped confi guration,
the DVX DM15 belies its unobtrusive look with performance that is far from understated, delivering plenty of power to cover midsized to large stages.
The DSP also offers switchable system presets that adapt the monitor’s performance to suit the given application.
Made of rugged multiplex and coated with tough black lacquer, the cabinet sets up at two different angles.
It is also equipped with a pole mount, enabling the DVX DM15 to be set on a tripod or speaker pole
Specifications
DVX DM15
Technical Specifications
System Specifications
Speaker Type 2-Way Active Stage Monitor
HF 1.4”
Type HF Neodymium Compression Driver
Voice Coil HF Titanium 2.5”
Max SPL 132 dB
Frequency Response [-10dB] 50 - 20.000 Hz
[- 3dB] 59 - 19.000 Hz
Handles 2x recessed handles (one on each side)
Width 734 mm (28.90 in)
Acoustical Data
Directivity 40° x 60°
Horn CD Horn Aluminium
Rotatable Horn YES
LF 15”
Type LF Neodymium
Voice Coil LF 3.5”
Amp Technology Digipro®
Amp Class Class D
Amplifier
Peak Power 1500 W
Power Supply Full-range with PFC
Cooling Convection
Controller DSP 24 Bit/48 kHz
System Presets Flat, Monitor
Limiter RMS, Peak, Thermal, Multiband
Crossover Frequency MF-HF 1350 Hz
Processor
Slope MF-HF 24 dB/Octave
Connections / Controls
Input XLR balanced
Out XLR balanced (Link out)
EQ Preset 2-way switch (Monitor - Full-range)
Sensitivity Rotative knob
Indicators 4x LEDs (ON, MUTE, SIGNAL, LIMITER)
Mains Powercon® (Mains Input- Blue)
Powercon® (Mains Link - White)
Mains Fuse 220-240V~ (T5A 250V) / 100-120V~ (T10A 250V)
Housing Multiplex plywood
Mechanics
Housing Design Low Profile Multifunctional
Angles Up 35°, 55°
Height 338 mm (13.31 in)
Depth 442 mm (17.40 in)
Weight 21 kg (46.3 lbs.
- SKU
- DVX-DM15
- Model #
- DVX DM15
- Barcode
- 930141005930
- Brand
- dB Technologies
