Description

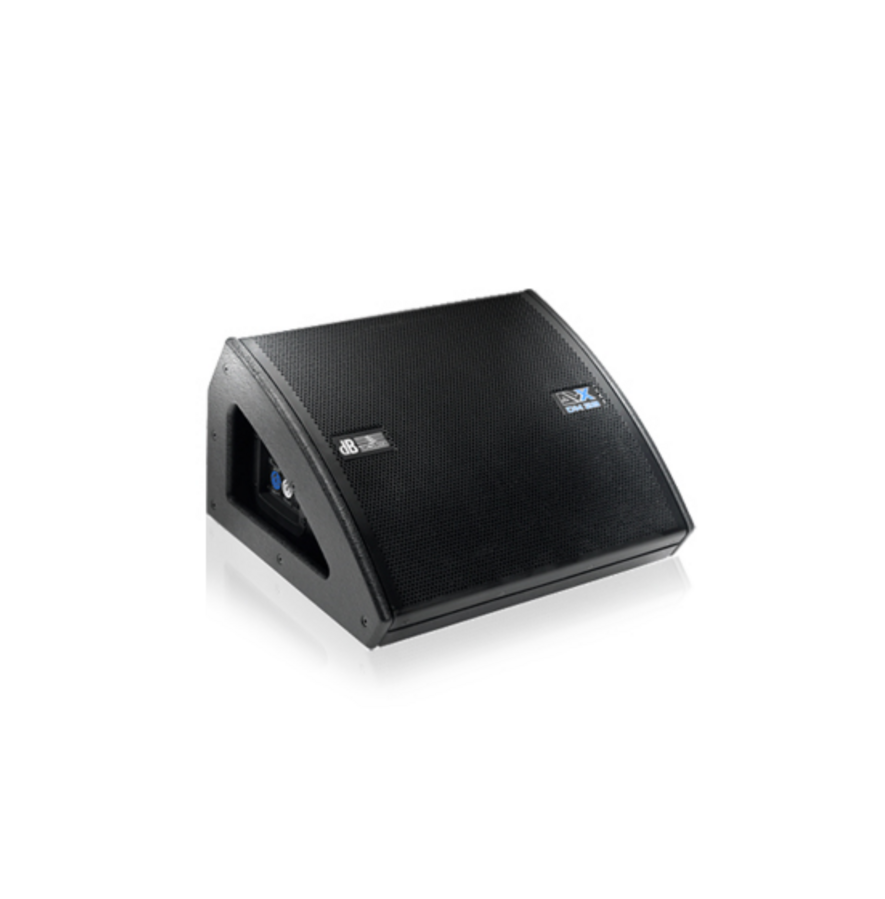

In contrast to cabinets loaded with simple 8” speakers, the DVX DM28 packs a mighty low-midrange punch.

What’s more, it responds far faster to transients in the signal, rendering each attack with awesome accuracy and power.

Offering far greater dynamic range, it outperforms standard 12“ systems by.





A combination of asymmetrical CD horn (90° x 60°(40°)) and precision-matched 1“ neodymium compression driver efficiently couples high frequencies.

The digipro digital power amp featuring a PFC switched-mode power supply and the speakers are fine-tuned to minimize the risk of feedback, ensuring the DVX DM28 remains remarkably feedback resistant even at peak SPL.

Made of rugged multiplex and coated with tough black lacquer, its light low profile enclosure sets up at two different angles.

The integrated controller acts as the enclosure’s controller, serving as an active equalizer, active x-over with phase and delay time alignment, and controlling the onboard limiter.





Specifications

DVX DM28
Technical Specifications
System Specifications
Speaker Type 2-Way Active Stage Monitor
HF 1”
Type HF Neodymium Compression Driver
Voice Coil HF Titanium 1.75”
Max SPL 130 dB
Frequency Response [-10dB] 70 - 20.000 Hz
[- 3dB] 89 - 19.000 Hz
Handles 2x recessed handles (one on each side)
Width 480 mm (18.90 in)
Acoustical Data
Directivity 90°x60°/40°
Horn Asymmetrical
LF 2x8”
Type LF Neodymium
Voice Coil LF 2.5”
Amp Technology Digipro®
Amp Class Class D
Amplifier
Peak Power 1500 W
Power Supply Full-range with PFC
Cooling Convection
Controller DSP 24 Bit/48 kHz
System Presets Flat, Monitor
Limiter RMS, Peak, Thermal, Multiband
Crossover Frequency MF-HF 1600 Hz
Processor
Slope MF-HF 24 dB/Octave
Connections / Controls
Input XLR balanced
Out XLR balanced (Link out)
EQ Preset 2-way switch (Monitor - Full-range)
Sensitivity Rotative knob
Indicators 4x LEDs (ON, MUTE, SIGNAL, LIMITER)
Mains Powercon® (Mains Input- Blue)
Powercon® (Mains Link - White)
Mains Fuse 220-240V~ (T5A 250V) / 100-120V~ (T10A 250V)
Housing Multiplex plywood
Mechanics
Housing Design Low Profile Multifunctional
Angles Up 30°, 60°
Height 265 mm (10.43 in)
Depth 418 mm (16.46 in)
Weight 14 kg (30.86 lbs.)

SKU
DVX-DM-28
Model #
DVX DM28
Barcode
930141005929
Brand
dB Technologies
