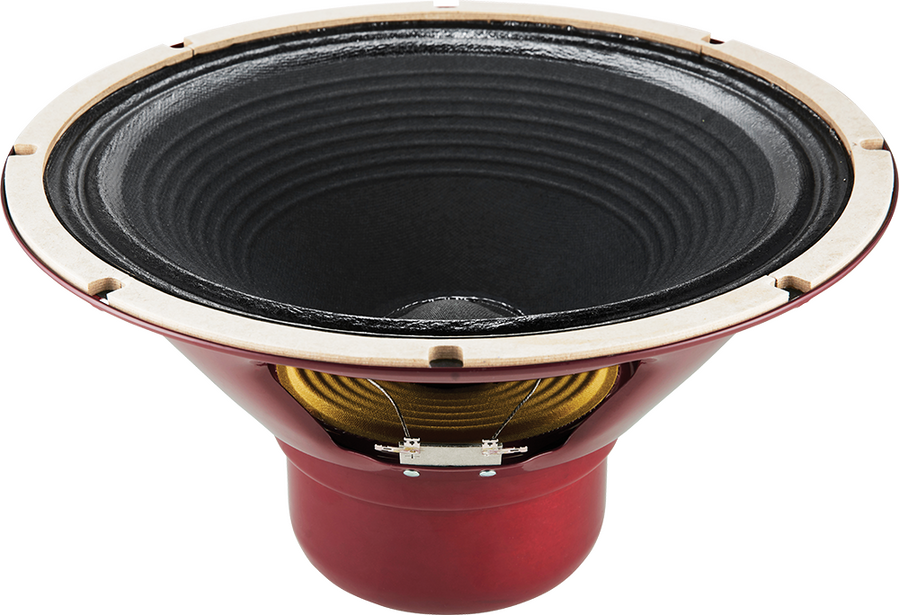

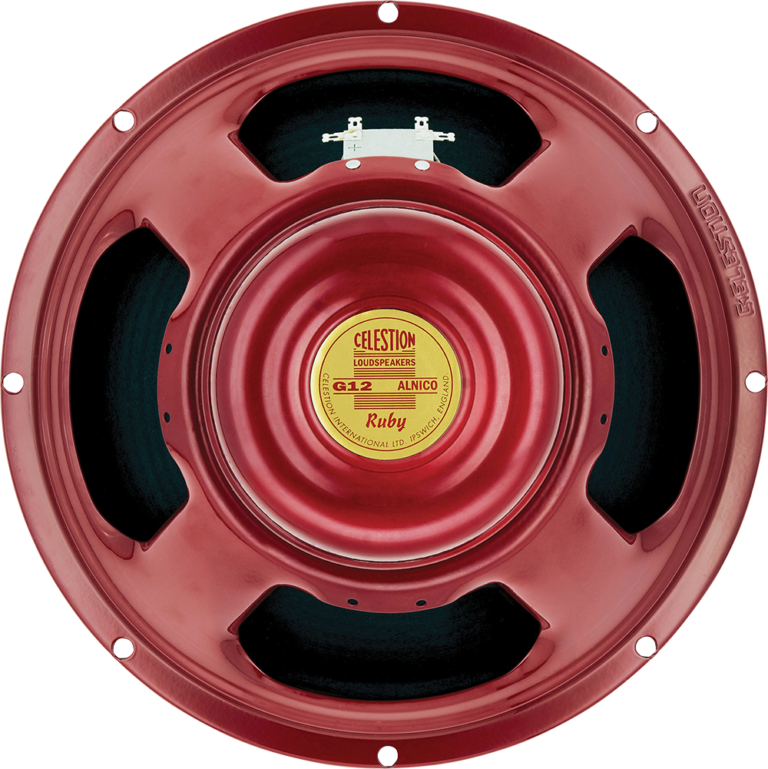

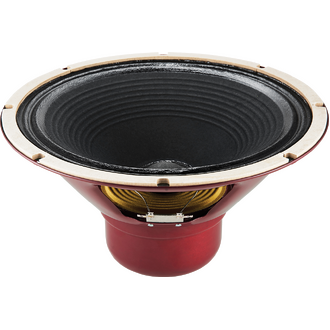

Celestion Ruby 12" 35W Speaker 16 Ohm T6385 12-inch alnico-magnet guitar speaker 28CELESTIONRUBY-16 $ 529 $529.00
How to get it Learn More
Store Click & Collect - Available In Stock
Online In Stock
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

The Ruby is an alnico-magnet guitar speaker that’s purpose-built to create vintage tones – and at 35-watts power handling it’s ideal for use with mid-powered amps and combos. Bringing the instantly familiar Celestion alnico vibe with its glorious dampened attack; the Ruby oozes a richly musical vintage warmth with mellow highs and a smooth sophisticated midrange.



Specifications

Specifications

Diameter: 12in

Rated Impedance: 8Ω or 16Ω

Sensitivity: 100dB



Nominal diameter: 305mm / 12in

Power rating: 35W

Rated impedance: 8Ω or 16Ω

Sensitivity: 100dB

Chassis type: Pressed steel

Magnet type: Alnico

Voice coil diameter: 1.75in / 44mm

Voice coil material: Round copper

Frequency range: 75-5000Hz

Resonance frequency, Fs: 75Hz

DC resistance, Re: 6.7Ω or 13.1Ω




8Ω Frequency Response

8Ω Frequency Response

Mounting Information

Cut-out diameter: 283mm / 11.1in

Diameter: 309mm / 12.2in

Magnet structure diameter: 128mm / 5.0in

Mounting hole dimensions: 7.9mm / 0.31in Ø

Mounting hole PCD: 297mm / 11.7in

Number of mounting holes: 8

Chassis depth (inc gasket): 92mm / 3.63in

Magnet depth: 73mm / 2.87in

Overall depth: 165mm / 6.5in

Unit weight: 4.2kg / 9.3lb
