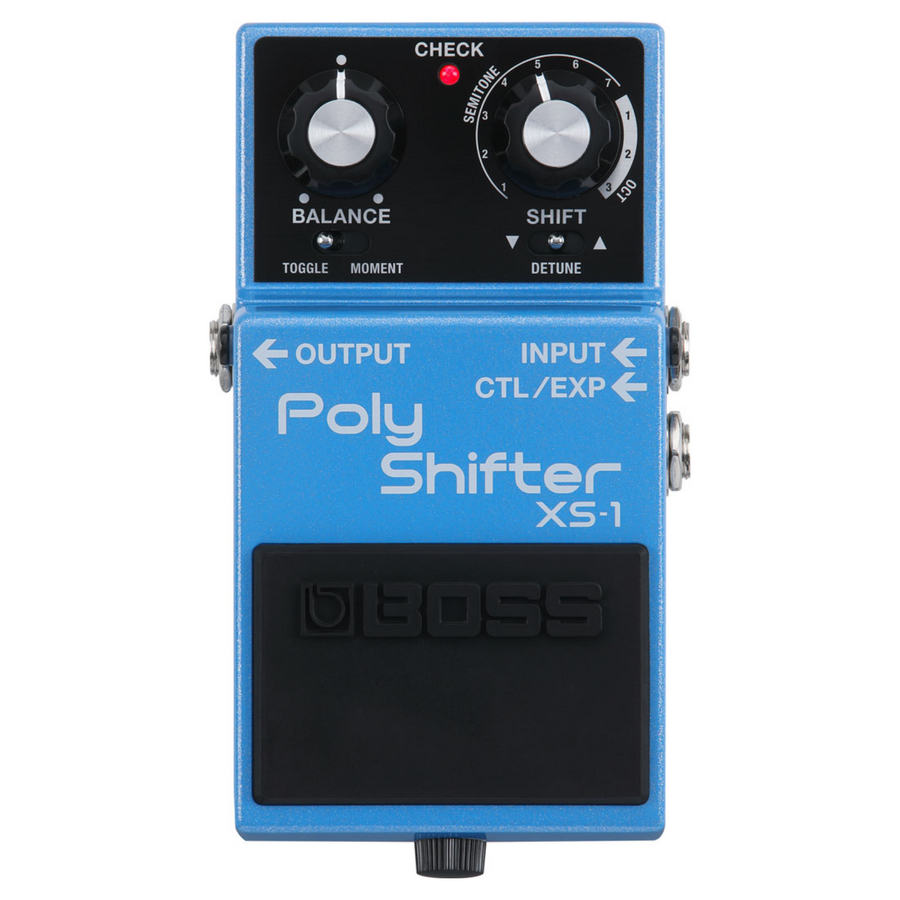

Boss XS100 Poly Shifter, Pitch Shifting Pedal Class leading pitch expression technology XS1 $ 339 $399.00
How to get it Learn More
Store Click & Collect - Available In Stock
Online In Stock
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

Rapid Retuning, Flawless Sound

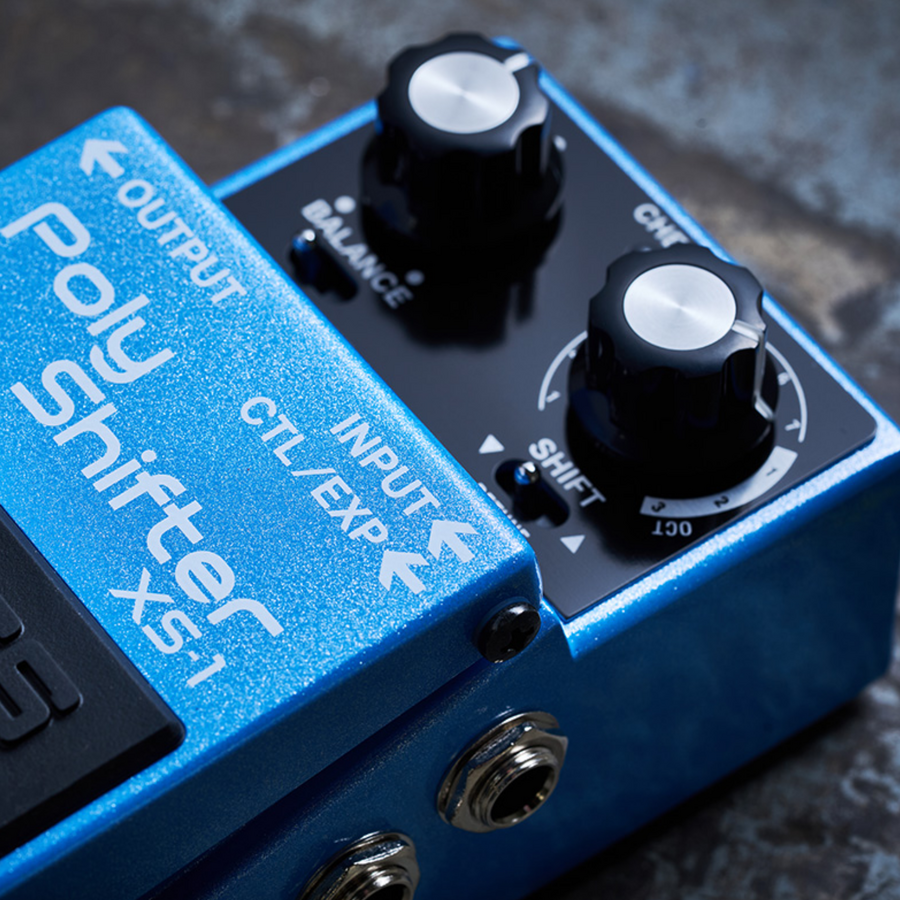

The XS-1 Poly Shifter delivers instant retuning in a convenient, compact footprint. Driven by advanced BOSS algorithms years in the making, this magical pedal transforms the overall pitch while maintaining your instrument’s true character. You get speedy tracking, crystal-clear response, and zero compromise in tone—whether shifting down, simulating a capo, or using extreme octave jumps for effect. The versatile XS-1 unlocks a new level of performance freedom, making tuning changes fast, fluid, and seamless.


Natural Sound with Advanced BOSS Technology

In developing the XS series, BOSS engineers pioneered new methods to advance real-time pitch shifting and eliminate the tonal artifacts common in conventional designs. Powered by finely tuned algorithms and a specially selected DSP platform, the XS-1 provides balanced polyphonic performance that feels natural and musical across all playing styles, pickup positions, and pedal setups. Your instrument’s attack and tonal character are fully preserved, and even complex chords and sustained lead tones—typically a challenge for pitch shifters—are reproduced with stunning clarity.


Redefining Pitch Shifting for Live Performance

Retuning during a performance means long pauses, instrument swaps, or pedal solutions that can color the sound in undesirable ways. With the XS-1, you can shift tunings on demand and retain great sound, feel, and response—without ever breaking the momentum of a show. Authentically play songs in drop tunings, change keys to suit a vocalist’s range, create unique extended-range sounds, and more.


Wide Range, Simple Controls

Offering a range of +/- seven semitones and three octaves up or down, the XS-1 adapts to virtually any musical need. Thanks to the signature BOSS compact interface, dialing in sounds is fast and intuitive. With semitone tunings, you’ll usually want to set the Balance knob for effect only to avoid pitch conflicts. For octave shifts, use it to blend in the direct sound for 12-string effects, parallel guitar/bass sounds, and unexplored colors. There’s also a Detune mode to create evocative doubling effects with high-definition tone


Supreme Creative Command

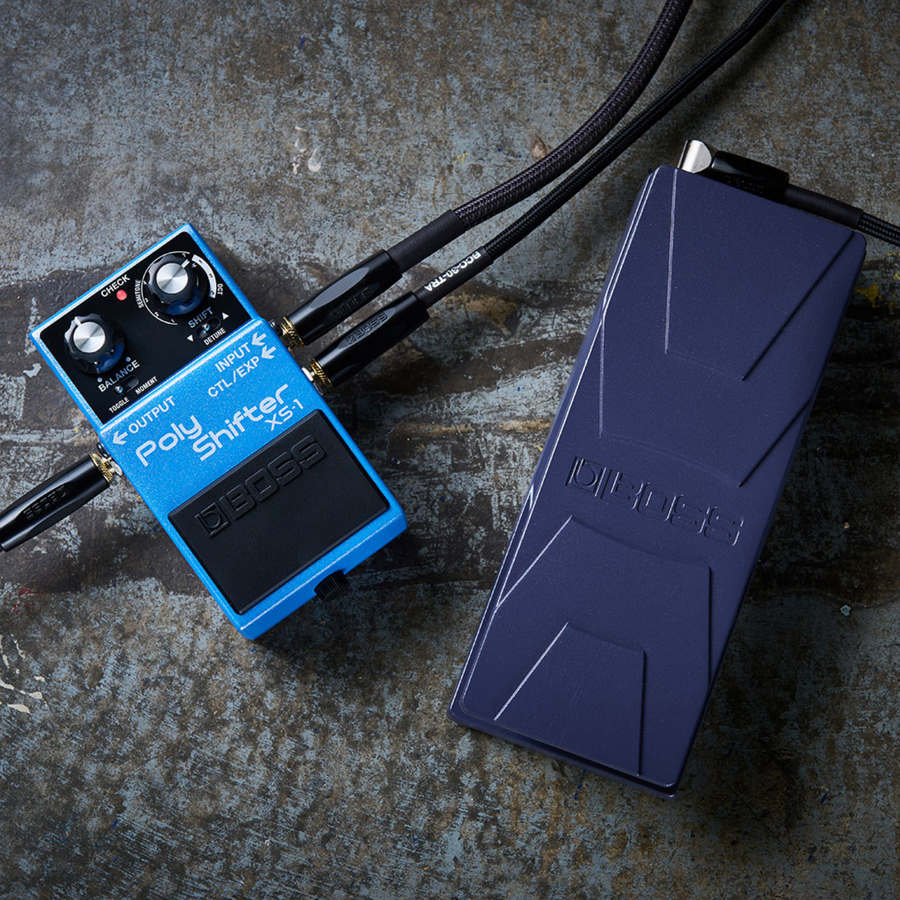

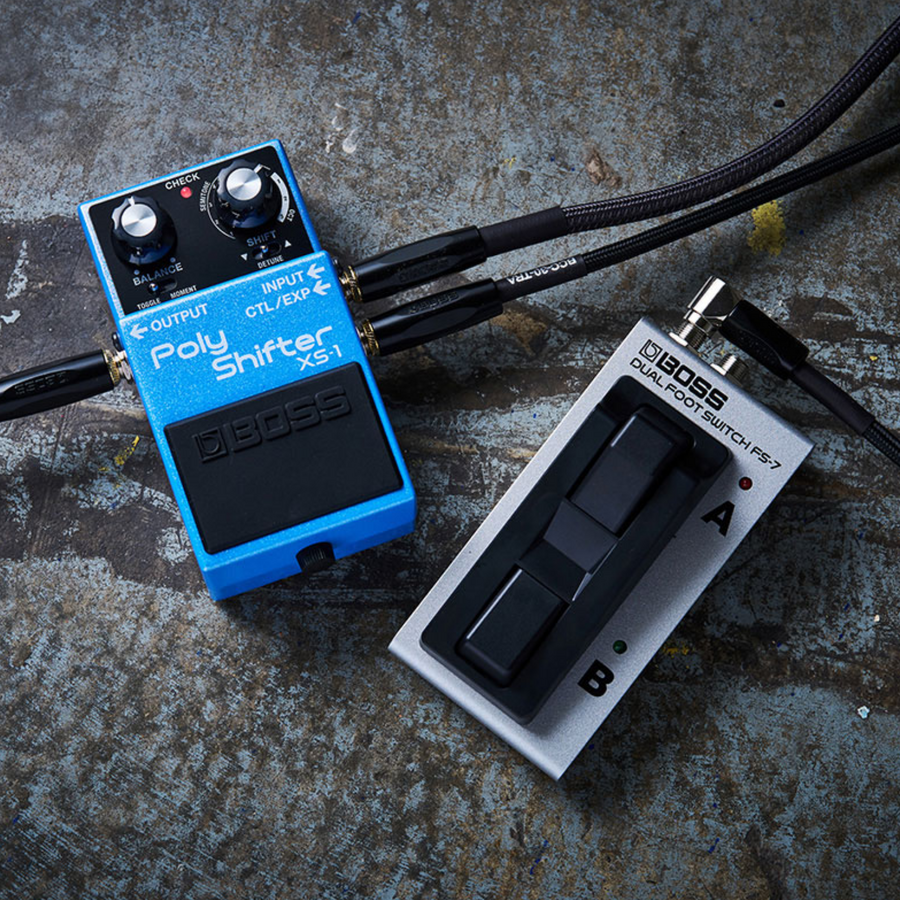

The XS-1 provides a variety of control options to meet your creative intent. With the flip of a panel control, you can assign the pedal switch for standard on/off toggle use or momentary operation. Connect up to two external footswitches for fast access to alternate tuning modes with your preferred Balance settings. Or add an expression pedal to transform the XS-1 into a dynamic pitch-bending tool for dramatic, ear-turning shifts.



Specifications

AD Conversion
    24 bits + AF method
    AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion
    32 bits

Sampling Frequency
    48 kHz

Nominal Input Level
    -20 dBu

Maximum Input Level
    +7 dBu

Input Impedance
    1 MΩ

Nominal Output Level
    -20 dBu

Maximum Output Level
    +7 dBu

Output Impedance
    1 kΩ

Recommended Load Impedance
    10 kΩ or greater

Bypass
    Buffered bypass

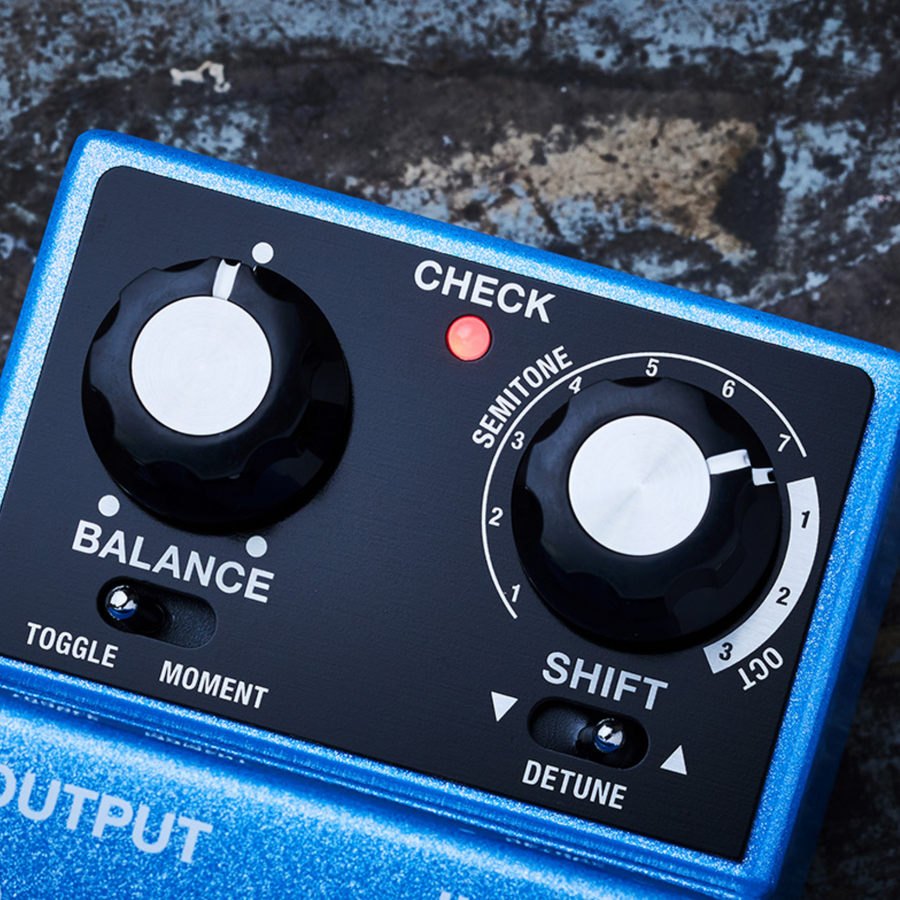

Controls
    BALANCE knob
    SHIFT knob
    PEDAL MODE switch
    SHIFT DIRECTION switch
    Pedal switch

Indicator
    CHECK indicator (Used for check battery)

Connectors
    INPUT jack: 1/4-inch phone type
    OUTPUT jack: 1/4-inch phone type
    CTL/EXP jack: 1/4-inch TRS phone type
    DC IN jack

Power Supply
    AC adaptor
    Alkaline battery (6LR61 or 6LF22, commercially available) x 1

Current Draw
    120 mA

Expected battery life under continuous use
    Alkaline battery (6LR61): Approximately 3 hours
    * This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.

Accessories
    Leaflet (“USING THE UNIT SAFELY”, “IMPORTANT NOTES” and “Information”)
    Alkaline battery (9 V, 6LR61 or 6LF22)

Options (sold separately)
    AC adaptor: PSA series
    Footswitch: FS-5U
    Dual footswitch: FS-6, FS-7
    Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5

Size and Weight
Width
    73 mm
    2-7/8 inches
Depth
    129 mm
    5-1/8 inches
Height
    59 mm
    2-3/8 inches
Weight (including battery)
    410 g
    15 oz
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.



Features

-    Class-leading pitch shifting quality realized with new BOSS algorithms
-    Instantly change the pitch of a guitar, bass, or other instrument
-    Clear response and natural feel that retains the fundamental sound character
-    Change pitch across +/- seven semitones or +/- three octaves
-    Balance knob adjusts the mix between the effect and direct sound
-    Detune function (+/- 20 cents) to create rich doubling effects
-    Selectable pedal switch modes for toggle or momentary operation
-    Connect external footswitches for quick access to up to three tuning setups, or use an expression pedal for linear pitch control
-    BOSS five-year warranty
