Description
Introducing the RT-2 Rotary Ensemble, a remarkable pedal designed to deliver the stunning sound of rotary speaker cabinets without the bulk and heft that often limits accessibility. Powered by cutting-edge BOSS advancements, this pedal captures the expressive spatial effects of traditional rotary speakers in a compact format that seamlessly fits into any setup. The RT-2 authentically recreates the intricate sonic nuances of its predecessors, offering three distinct sound modes, extensive tonal shaping options, and advanced functionality through its onboard pedal switch and external control.
Originally developed for organs in the 1940s, rotary speakers generate captivating modulation effects through motor-controlled components that rotate within the cabinet at varying speeds. This dynamic sound has become integral to the classic combo organ voice, and musicians across genres—including guitarists—have harnessed rotary speakers to enrich their tracks with a signature depth and movement that remains timeless.
The most celebrated rotary speaker designs incorporate a high-frequency horn alongside a bass rotor that spins within a rotating drum. By alternating rotor speeds between fast and slow, musicians craft a continuous stream of tonal variations that enhance expressiveness. The RT-2 superbly emulates these audio behaviors, equipped with two-way speed control, a Rise/Fall Time switch for customizable speed transitions, and a vibrant indicator that tracks the virtual rotors' rotation.
With the RT-2’s three-position Mode switch, users can easily access the classic rotary speaker sound alongside two modern variations refined through expert BOSS tuning. Mode I offers an authentic recreation of the legendary vintage rotary speaker sound, enhancing the tone of any instrument—from guitar and bass to organs and synths. Mode II presents a richer vintage sound with a broader tonal range, particularly effective when paired with overdrive and distortion pedals. Mode III delivers a definition-rich experience with intense modulation and drive settings, amplifying the impact of arpeggio lines and solos.

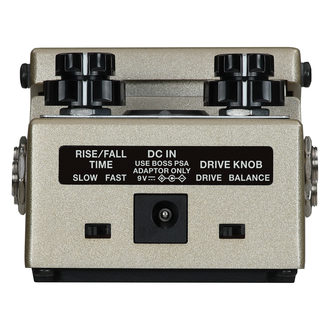

Drawing inspiration from vintage tube amplification circuits, the RT-2 features a Drive knob that introduces a desirable level of distortion, ranging from subtle warmth to gritty intensity. Additionally, a rear-panel switch allows this dual-function control to adjust the volume balance between the treble and bass rotors, enabling fine-tuning of various tonal characteristics. Impressively, your most recent settings for drive and balance are automatically saved in memory, making them readily available the next time you power up.
Real-time speed control is fundamental to the rotary experience, and the RT-2 offers an array of options to facilitate it. The pedal switch provides four operation types, presenting innovative ways to bypass the effect and alter speeds during performance. For further customization, you can connect up to two external footswitches for independent speed control, along with a “brake” setting that halts the virtual rotors at their current positions for distinctive tones. Alternatively, an expression pedal grants continuous control over level, drive, balance, and speed, with flexible assignment capabilities for each parameter, ensuring a personalized playing experience.
Features
- Authentic rotary speaker sounds and behaviors condensed into a space-saving BOSS compact pedal
- Three versatile modes include a vintage rotary sound and two modified tones with enhanced spatial effects
- Virtual rotor display with lights that indicate treble and bass rotor speeds
- Fast/slow rotor speed control
- Drive knob to add vintage tube saturation
- Rise/Fall Time switch adjusts the transition time between rotor speeds
- Drive/Balance switch assigns the Drive knob to control the saturation amount or the volume balance between the treble and bass rotors
- Four selectable pedal switch modes for bypassing the effect and controlling the rotor speed in various ways while performing
- Support for advanced control with external footswitches or an expression pedal (speed, brake, and other functions)
- Mono/stereo input and output
- Two stereo output modes: standard stereo (default) or individual wet and dry outputs
- BOSS five-year warranty
Specifications
Sample Rate
48 kHz
AD Conversion
24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.
DA Conversion
32 bits
Nominal Input Level
INPUT A (MONO), INPUT B: -20 dBu
Maximum Input Level
INPUT A (MONO), INPUT B: +7 dBu
Input Impedance
INPUT A (MONO), INPUT B: 1 MΩ
Nominal Output Level
OUTPUT A (MONO), OUTPUT B: -20 dBu
Maximum Output Level
OUTPUT A (MONO), OUTPUT B: +7 dBu
Output Impedance
OUTPUT A (MONO), OUTPUT B: 1 kΩ
Recommended Load Impedance
OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater
Bypass
Buffered bypass
Controls
SLOW knob
FAST knob
DRIVE knob
LEVEL knob
MODE switch
Pedal switch
RISE/FALL TIME switch
DRIVE KNOB switch
Indicator
CHECK indicator (Used for indication of Tempo and check battery)
VIRTUAL ROTOR
Connectors
INPUT A (MONO) jack, INPUT B jack, OUTPUT A (MONO) jack, OUTPUT B jack: 1/4-inch phone type
CTL/EXP jack: 1/4-inch TRS phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61 or 6LF22, commercially available)
AC adaptor (PSA series: sold separately)
Current Draw
115 mA
Expected battery life under continuous use
Alkaline: Approx. 2.5 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Dry battery (9 V, 6LR61 or 6LF22)
Options (sold separately)
AC adaptor: PSA series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
Size and Weight
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
450 g
1 lb
* 0 dBu = 0.775 Vrms
*The specifications are subject to change without notice.
