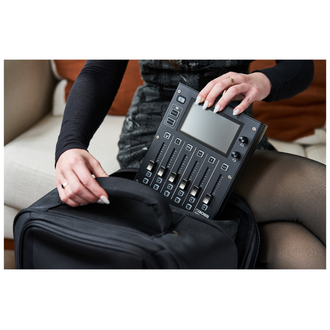

Gigcaster 5 is a powerful all-in-one audio command center purpose-built for musicians who livestream and create audio and video content. It provides a host of advanced features in a space-saving desktop interface, including premium audio connectivity and live operation via hands-on controls and a vivid color touchscreen. Plug in a guitar or bass and play with flagship-level GT amps and effects. Connect mics and shape voices with studio-grade processing from the VE series. And bring in another instrument using the stereo line input. You can mix up to five sources as you stream, including background music and sound from a remote guest or student. Adding in customizable features, external control support, and more, Gigcaster 5 is an essential partner for music performers, remote educators, podcasters, and anyone creating music-focused media.
With Gigcaster 5, you can stream and jam with impressive guitar and bass tones without the need for external processing. Just plug into the front-panel jack and start rocking with premium amps and effects ported from the top-line GT-1000. Versatile preset patches provide 100 ready-to-play sounds, while 200 user locations are available for storing parameter tweaks and custom-built setups. A built-in tuner is always at hand, a vital tool for every session. And with extensive control support via footswitches, expression pedals, and the GA-FC or GA-FC EX, you can operate your rig hands-free as you perform.
Gigcaster 5 also features inputs for additional gear and playing along with other musicians. Tap into broadcast-quality XLR mic sounds with two low-noise preamps, wide dynamic range, and phantom power support. And use the stereo line input for an instrument such as a keyboard or drum machine. Dedicated vocal effects from the popular VE series allow you to sing with effects like compression, pitch correction, delay, and reverb, and you can even dial up harmonies that automatically follow a set key. Effects are also available for speaking—including fun transformer effects that change the sound of your voice—along with console effects to enhance the sounds of connected sources.
Gigcaster 5 puts a deep array of mixing and audio routing features at your fingertips. Along with the three analog input channels, there are dedicated stereo channels for Bluetooth® and USB audio, and each mixer channel includes a variety of sound-shaping options for pro mixing on the fly. Gigcaster 5 can also communicate with multiple computer audio channels over USB, providing lots of flexibility for different streaming applications and working with remote guests, DAW music tracks, game audio, and more.
The compact Gigcaster 5 delivers a host of real-time creative tools while taking up minimal desktop space. You can play music from a mobile device via Bluetooth, and there’s a ducking function to automatically reduce the volume as you speak over it. When connected with the Gigcaster 5 App, it’s possible to trigger theme songs, sound effects, sample loops, and backing tracks with touches on the display as you stream. Eight pads and eight pad banks provide a total of 64 on-demand sounds, which you can easily configure and organize into libraries within the app.

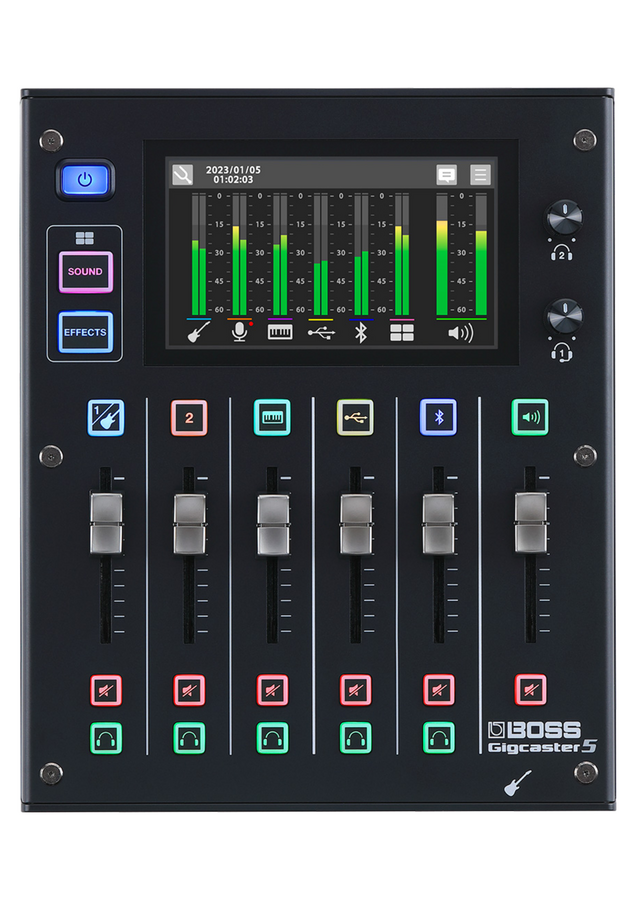

With the color touch display and intuitive panel controls, you can operate Gigcaster 5 using nothing but the hardware. Mix sources with the faders and mute buttons, view signal levels on screen, quickly access and edit effects, and apply noise suppression, de-essing, and other tools for a polished sound. You can go even further with the Gigcaster 5 App, tweaking various parameters on your computer’s screen as you work.
Gigcaster 5 offers many configurable features to suit any streaming style. Eight onscreen effect pads—configured in eight banks—give you 64 command sources for quick sound changes from the touch display. Up to four effects controls can be assigned to each pad, including preset selection, bypass, and more. It’s also possible to control pad assignments via external footswitches for hands-free access. MIDI over USB is supported as well, providing advanced control of music, video, and streaming applications that respond to MIDI commands.
Gigcaster 5 works as a high-quality 16x12 USB audio interface for recording streams and full song productions in a DAW. Capture a live stereo mix in your streaming software for archiving and distribution. Or use Gigcaster 5 and its latency-free effects as a multi-channel front end for recording tracks and building songs in your favorite music production software.
*Minimum requirement for USB bus power: 5 V/3 A.
Sampling Rate 48 kHz
AD Conversion 24 bits
DA Conversion 32 bits
Processing 32-bit floating point
USB Audio Input: 16 ch Output: 12 ch
Bluetooth A2DP, HFP
Effect Patches GUITAR: 200 (User) + 100 (Preset) SING: 200 (User) + 30 (Preset) TALK: 200 (User) + 30 (Preset)
Number of Effects GUITAR: 1 CH (DISTORTION, PREAMP, EQ, NS, PEDAL FX, FX1, FX2, FX3, DELAY/REVERB) SING: 2 CH (COMP, NHANCE, DESS, EQ, NS, PITCH CORRECT, HARMONY, FX1, FX2, FX3, DELAY/REVERB) TALK: 3 CH (COMP, ENHANCE, DESS, EQ, NS, FX1, FX2) CONSOLE: 5 CH (COMP, ENHANCE, DESS, NS, FX) OUTPUT: COMP, REVERB
Nominal Input Level(Adjustable) GUITAR INPUT: -10 dBu MIC INPUT 1, 2: -40 dBu INST INPUT (L/R): -10 dBu
Input Impedance GUITAR INPUT: 1M ohms MIC INPUT 1, 2: 5.6 k ohms INST INPUT (L/R): 100 k ohms
Nominal Output Level MAIN OUT L, R: -10 dBu
Output Impedance MAIN OUT L, R: 1 k ohms PHONES 1, 2: 47 ohms
Recommended Load Impedance MAIN OUT L, R: 10 k ohms or greater
Display Color Graphic LCD (480 x 272 dots) Touch screen
Controls CH 1--5 EDIT buttons, OUTPUT EDIT button, CH 1--5 MUTE buttons, OUTPUT MUTE button, CH 1--5 MONITOR buttons, EFFECTS button, SOUND button, CH 1--5 faders, OUTPUT fader, Headphones 1, 2 knobs

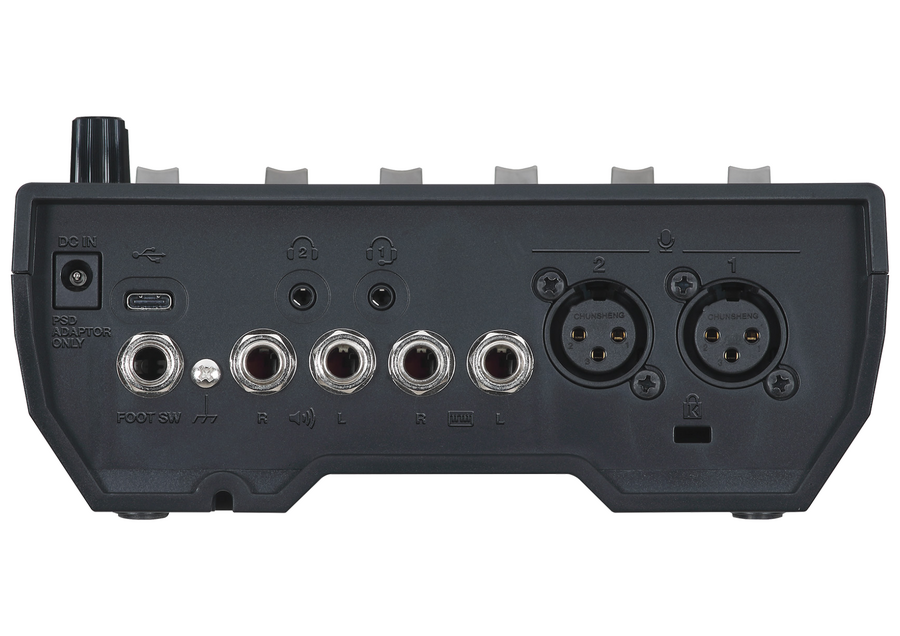

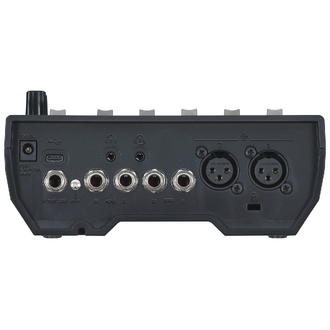

Connectors Guitar jack: 1/4-inch phone type Mic 1, 2 jacks: XLR type, balanced, phantom power: DC 48 V, 10 mA Max INST (L, R) jacks: 1/4-inch phone typ MAIN OUT (L, R) jacks: 1/4-inch phone type Headphones 1 jack: Stereo miniature phone type (CTIA) Headphones 2 jack: Stereo miniature phone type FOOT SW jack: 1/4-inch TRS phone type USB port: USB type-C(R) DC IN jack
Power Supply AC adaptor (PSD series) USB BUS Power
Current Draw 1.6 A (with phantom power) 1.5 A (without phantom power)
Accessories AC adaptor: PSD series Owner's Manual Leaflet "USING THE UNIT SAFELY"
Options (sold separately) Footswitch: FS-5U Dual Footswitch: FS-6 Expression Pedal: FV-500L, FV-500H, Roland EV-5 Foot Controller: GA-FC, GA-FC EX
Size and Weight Width 177 mm 7 inches
Depth 216 mm 8-9/16 inches
Height 78 mm 3-1/8 inches Weight 0.96kg 2 lbs 2 oz
* 0 dBu = 0.775 Vrms *The specifications are subject to change without notice.
