SKU: BLU-ACM200
UPC:
Linked to MusiPos
RRP: $699
Stock:
1 — Primary Warehouse
Description
ACM200
Multicast Advanced Control Module for TCP/IP, RS-232 and IR Control of Blustream Multicast Systems with Web GUI.
Our UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch. The ACM200 Advanced Control Module allows for advanced third party control of the Multicast system using TCP/IP, RS-232 and IR.
The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB / KVM, Audio and Video.
Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
Features
Web interface module for configuration and control of the Blustream Multicast system
Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
Auto system configuration
2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP/IP control of Multicast system
RS-232 integration for control of Multicast system
IR integration for control of Multicast system
Video wall control functionality for up to a maximum of 9 x 9 array
PoE (Power over Ethernet) to power Blustream product from a PoE switch
Local 12V/2A power supply (optional) should Ethernet switch not support PoE (PSU not supplied)
Support for iOS and Android App control
3rd Party drivers available for major control brands
Specifications
-

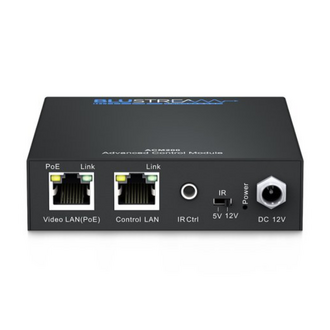

Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)
-

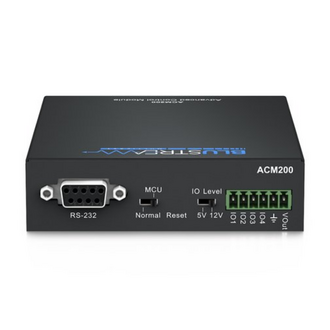

RS-232 Serial Port: 1 x DB-9 female
-
RS-232 & I/O Port: 1 x 6-Pin Phoenix connector
-
IR Input Ports: 1 x 3.5mm stereo jack
-
PoE draw: 4.0W (typical), 4.5W (max load)
-
Dimensions (W x D x H ): 96mm x 110mm x 26mm
-
Shipping Weight: 0.6kg
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- SKU
- BLU-ACM200
- Model #
- BLU-ACM200
- Barcode
- 935077000083
- Brand
- Blustream
