Description

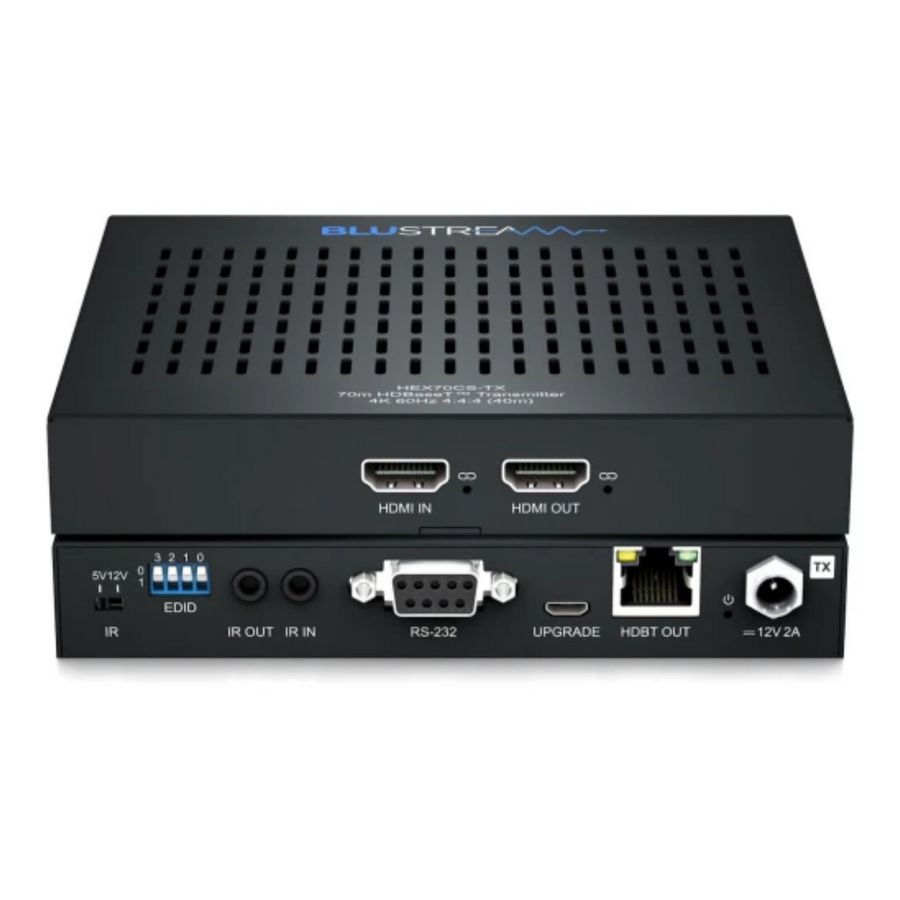

Our HEX70CS-TX HDMI 2.0 4K @ 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT transmitter offers market leading features and outstanding value utilising CSC technology with video down conversion.
The product extends HDMI, bi-directional IR & RS-232, and bi-directional PoC (Power over Cable) up to lengths of 70m (4K 40m) to a compatible receiver or matrix.
The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices.
Features
• Advanced HDBaseT technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC)
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
• Supports bi-directional RS-232 pass-through
• Supports bi-directional IR pass-through
• Supports bi-directional IR pass-through with switchable
• 5V/12V IR hardware support
• HDCP 2.2 support
Specifications
• Video Input Connectors: 1 x HDMI Type A, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A female
• RS-232 Serial Port: 1 x DB-9 female
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• EDID DIP Switch: 4-pin
• Power Supply: 12V/2A DC, screw type connector
• Power Consumption: 12.7W
• Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
• Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
• Ind. Extender Weight: 0.35kg (excluding accessories)
• Shipping Weight: 1.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Mounting Kit Included
Box Contents
1 x HEX70CS-TX
1 x Mounting Kit
Specifications
-
Ethernet Port: 2 x LAN RJ45 connector (1 x PoE support)
-
RS-232 Serial Port: 1 x DB-9 female
-
RS-232 & I/O Port: 1 x 6-Pin Phoenix connector
-
IR Input Ports: 1 x 3.5mm stereo jack
-
PoE draw: 4.0W (typical), 4.5W (max load)
-
Dimensions (W x D x H ): 96mm x 110mm x 26mm
-
Shipping Weight: 0.6kg
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Features
Web interface module for configuration and control of the Blustream Multicast system
Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
Auto system configuration
2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
- Better system performance as network traffic is separated
- No advanced network setup required
- Independent IP address per LAN connection
- Allows simplified TCP/IP control of Multicast system
RS-232 integration for control of Multicast system
IR integration for control of Multicast system
Video wall control functionality for up to a maximum of 9 x 9 array
PoE (Power over Ethernet) to power Blustream product from a PoE switch
Local 12V/2A power supply (optional) should Ethernet switch not support PoE (PSU not supplied)
Support for iOS and Android App control
3rd Party drivers available for major control brands
