Power Supply
1 x Internal 100 - 240V AC 50/60Hz.
1 x 4 pin XLR 12V DC In for external power supply or battery use.

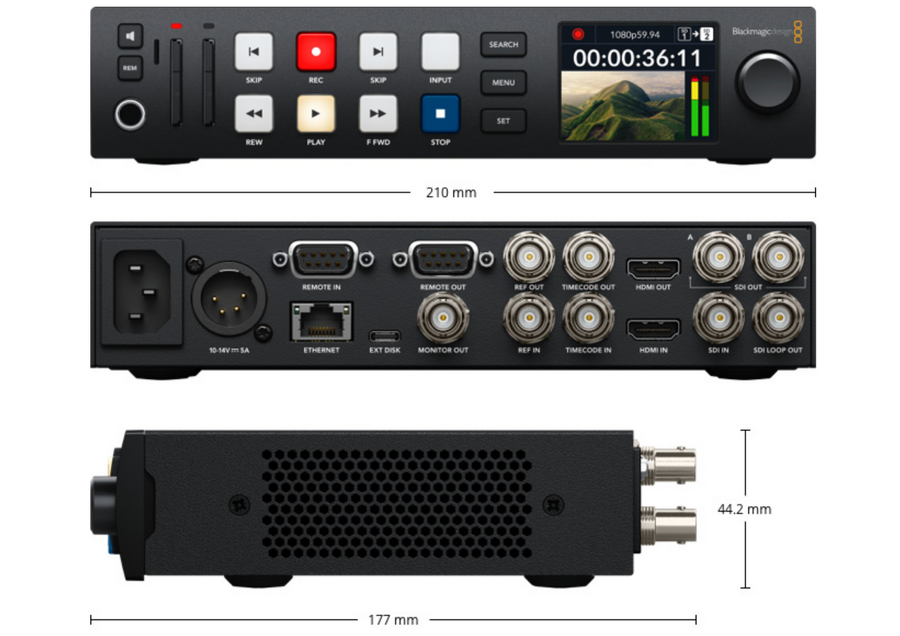

HyperDeck Studio HD Plus includes all the features of the Mini model, but is larger so it has more space for extra controls and extra connections. This model adds 6G-SDI so it can record and playback ProRes up to Ultra HD 30fps, and it includes an SDI loop out and HDR support. Plus the two 6G-SDI outputs allow fill and key playback up to 1080p60. There is also an HDMI input and a dedicated 3G-SDI monitoring output with overlays. Any button pushed on the front panel is sent to a dedicated RS-422 remote output and the DC power is now a broadcast style XLR connector. The front panel is also upgraded with better transport control buttons, a headphone socket and built in speaker.
1 x Internal 100 - 240V AC 50/60Hz.
1 x 4 pin XLR 12V DC In for external power supply or battery use.
100 W max.
| Connections | |
| SDI Video Inputs | 1 |
| SDI Video Outputs | 2 |
| SDI Monitor Outputs | 1 |
| SDI Rates | 270Mb, 1.5G, 3G, 6G. |
| HDMI 2.0 Video Inputs | 1 |
| HDMI 2.0 Video Outputs | 1 |
| Built in Speaker | Mono |
| Audio Output | 1 x 6.35 mm headphone jack. |
| Screen | 2.2 inch LCD |
| . | |
| Timecode Connections | 1 x BNC In, 1 x BNC Out. |
| Reference Connections | 1 x BNC In, 1 x BNC Out / Tri-Sync or Black Burst. |
| SDI Audio Inputs | 16 channels embedded audio. |
| SDI Audio Outputs | 16 channels embedded audio. |
| HDMI Audio Inputs | 8 channels embedded audio. |
| HDMI Audio Outputs | 8 channels embedded audio. |
| Remote Control | 1 x RS-422 In, 1 x RS-422 Out. |
| Recorder Configuration | Via user interface or Blackmagic HyperDeck Ethernet Protocol. |
| Ethernet | 1Gb/s |
| Computer Interface | 1 x USB Type-C 3.0 (up to 5Gb/s) for external drive recording, webcam out, software configuration and updates. |
1 Year
