Description

TG D57c

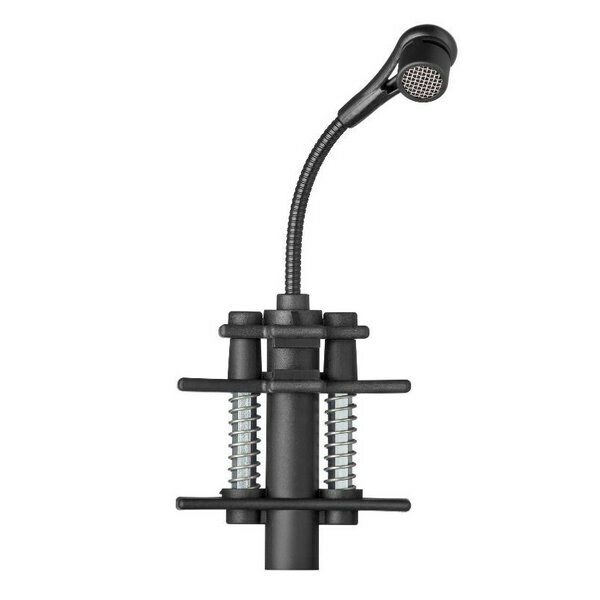

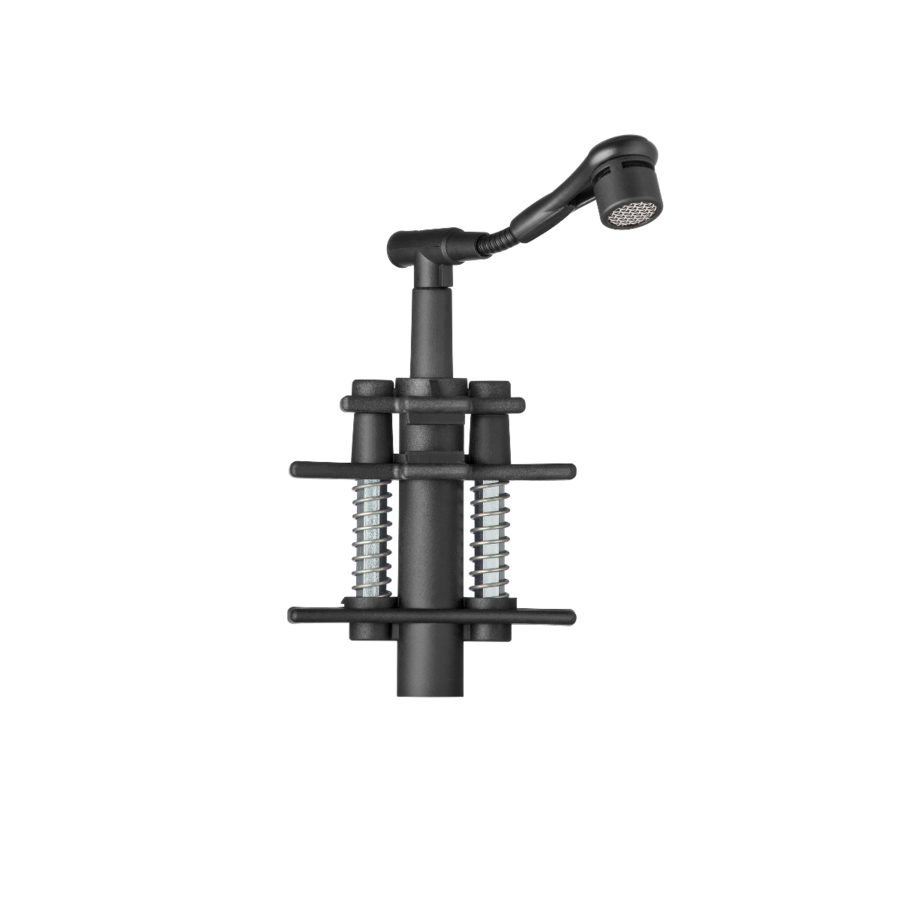

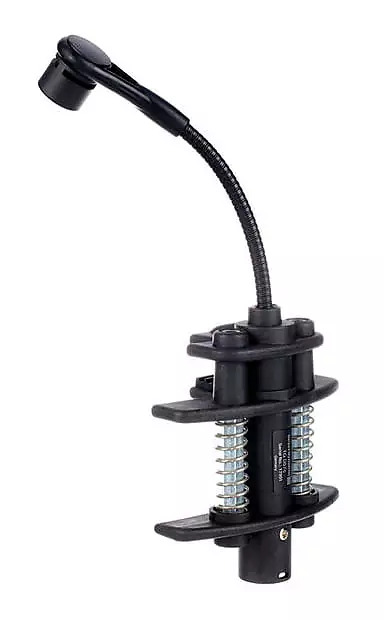

Whether with standing toms, snare drums or percussion instruments - with its patented clip-on mount and integrated pre-amplifier, the TG D57c condenser microphone is mounted and ready in a flash.

The expanded frequency range ensures faithful reproduction of all drum types and the 72 mm long flexible gooseneck allows it to be optimally positioned relative to the sound source. An elastic capsule suspension on the capsule housing protects against damage from drumstick strikes. The new electronics provide increased level accuracy and guarantee a very high maximum sound pressure level – even with phantom powering below 44 V.

  • Clip-on microphone for use at standing toms, snare drums or percussion instruments
  • Microphone clamp with integrated pre-amplifier
  • Expanded frequency range ensures faithful reproduction
  • Increased level accuracy and high maximum sound pressure level


Specifications

Transducer type . . . . . . . . . . . . . . . . Condenser (back electret)
Operating principle. . . . . . . . . . . . . . Pressure gradient
Polar pattern . . . . . . . . . . . . . . . . . . Cardioid
Frequency response
Close miking . . . . . . . . . . . . . . . . . . 20 -20,000 Hz
Distant miking (measured at 1 m) . . . 35 -20,000 Hz
Open circuit voltage . . . . . . . . . . . . . 5 mV/Pa (-46 dBV) ±2.5 dB
Nominal impedance . . . . . . . . . . . . . 200Ω
Load impedance . . . . . . . . . . . . . . . .≥1 kΩ
Max. SPLat 24 V and 48 V phantom power . . 140 dB
S/N ratio . . . . . . . . . . . . . . . . . . . . . . 59 dB [CCIR; Q-Peak]
70 dB [A; RMS]
Equivalent SPL . . . . . . . . . . . . . . . . . 35 dB [CCIR; Q-Peak]
24 dB [A; RMS]
Power supply . . . . . . . . . . . . . . . . . . Phantom power: 12 - 48 V
(recommended: 48 V)
Power consumption . . . . . . . . . . . . . 4.7 mA
Connection . . . . . . . . . . . . . . . . . . . 3-pin XLR, male
Dimensions
Clamp (W x H) . . . . . . . . . . . . . . . . . 85 x 118 mm
Gooseneck length . . . . . . . . . . . . . . 72 mm
Weight . . . . . . . . . . . . . . . . . . . . . . . approx. 145 g

SKU
BD707015
Barcode
930256000051
Brand
BEYERDYNAMIC

Warranty

2 Years

Please Note: This item may be on display at the Mooloolaba Music Shop and may have been available for demonstration to in store patrons. We take careful and meticulous care, boxing and cleaning of your product before the shipping or selling of an item. If you do want photos before making a purchase please call our shop where one of our staff can assist in sending more detailed images.

Mooloolaba Music reserves the right to cancel, at any time before delivery and for whatever reason, an Order that it has previously accepted. Mooloolaba Music may do this for example, but without limitation, where:

a) Mooloolaba Music's suppliers are unable to supply Goods that they have previously promised to supply
(b) an event beyond Mooloolaba Music's control, such as storm, fire, flood, earthquake, terrorism, power failure, war, strike or failure of computer systems, means that Mooloolaba Music is unable to supply the Goods within a reasonable time
(c) Goods ordered were subject to an error on the Website, for example, in relation to a description, price or image, which was not discovered prior to the Order being accepted;
(d) The products shown in the images above product may differ to the purchased product. Changes could include, different stands, treatments, slight variations in colour, In-built batteries and charging ports. Please contact our team for further clarification.

We ask that you research parts carefully before buying.
Purchase of any non-licenced part as a replacement spare part is at your own risk.
Some branded replacement parts also require professional installation to fit correctly.
If in doubt we will be happy to advise further and confirm suitability before purchase.

Reviews

BEYERDYNAMIC

Beyerdynamic TG D57C Condenser Cardioid Drum Microphone

Read reviews · SKU BD707015
$229.00 RRP $249.00
Price includes GST


Currently sold out What's this?
Talk to a specialistChat to us or call 5444 8889
Seen a better price?Ask for a price match
