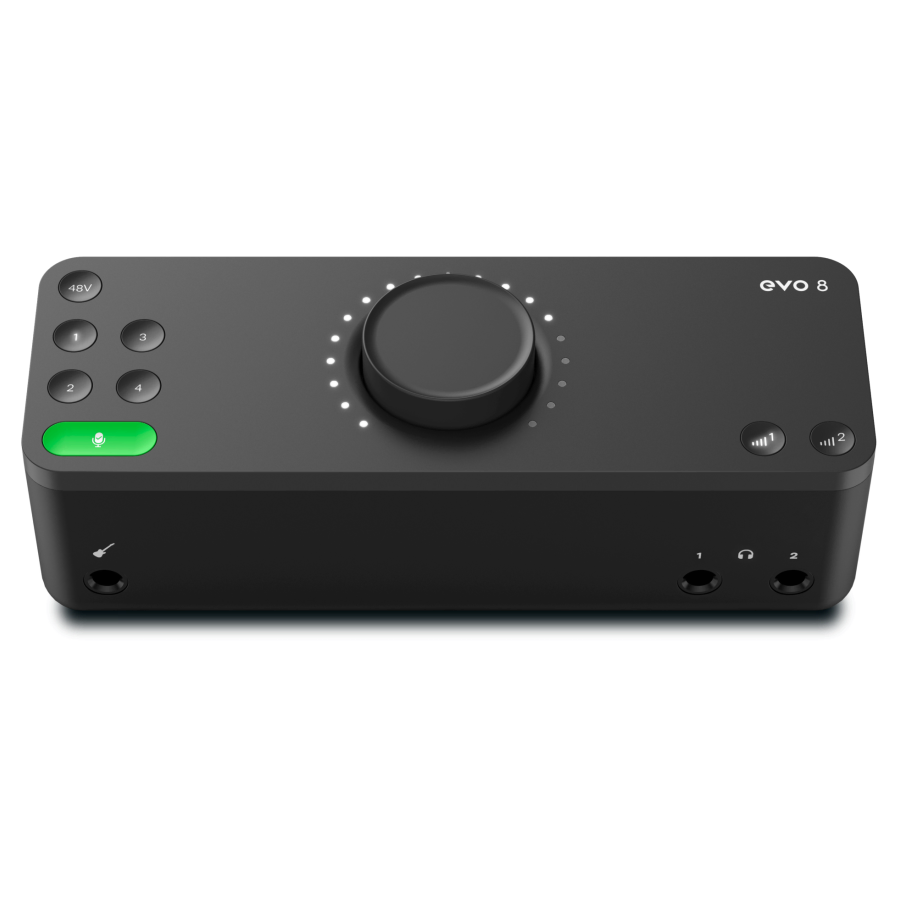

Audient EVO 8 USB Audio Interface - 4 In - 4 Out Featuring Analogue Preamps and Smart Gain Technoloy AUD-EVO8 $ 329 $365.00
How to get it Learn More
Store Click & Collect - Available In Stock
Online In Stock
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

At Mooloolaba Music, we’re excited to introduce the Audient EVO 8 USB Audio Interface, a game-changing tool for musicians and audio creators alike.

The EVO 8 stands out as a highly capable and impressively portable 4-channel audio interface, expertly designed for music recording whether you're at home or traveling. It features four award-winning EVO mic pres paired with advanced converter technology, ensuring that you achieve studio-quality audio right from the start. With intelligent mic preamps that automatically set their own levels through Smartgain, along with user-friendly controls and a comprehensive array of essential professional features, the EVO 8 transforms the typical audio interface into a groundbreaking experience.

Prepare to elevate your studio game with our exceptional preamps. The four EVO preamps are built to enhance your recordings effortlessly, ensuring that you achieve a professional audio standard grounded in 25 years of engineering expertise. The analogue mic preamp is engineered to provide the truest and cleanest representation of your sound, regardless of what you are capturing.

Accurate audio reproduction is paramount, and the EVO 8 excels in this area with its high-performance converters. Offering an impressive dynamic range of 113dB in combination with remarkably low noise and distortion levels, the EVO 8 enables you to create music with the quality you expect from industry professionals in no time.

Introducing Smartgain, your new best friend in simplifying the recording process. This remarkable feature eliminates the uncertainty of level setting; utilizing a swift algorithm, Smartgain performs advanced peak analysis to automatically evaluate and adjust your gain settings, achieving optimal levels in under 20 seconds. This means you can enjoy consistently perfect recordings every single time.

Don’t hesitate to reach out to one of our knowledgeable staff members at Mooloolaba Music, who would be more than happy to explain all the incredible features of the EVO 8 in more detail today.

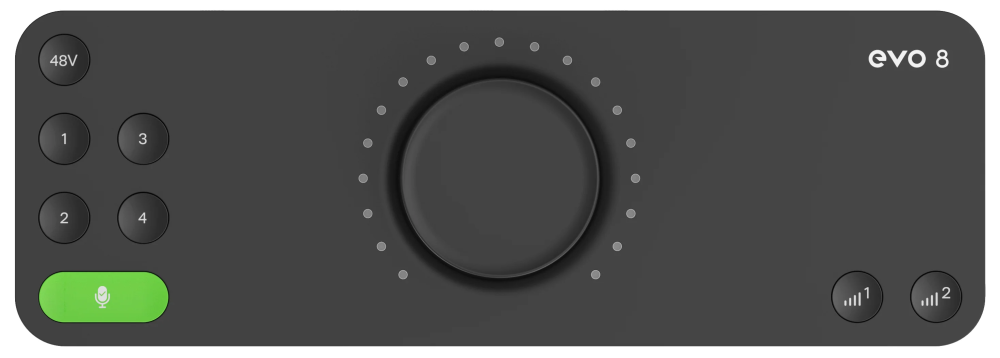

Audient EVO 8 Mooloolaba Music



3-year Limited Warranty to original purchaser

Weights:     Unit:     0.475kg
    Packaged:     0.815kg
Dimensions:     Unit:     190mm (w) x 70mm (h) x 70mm (d)
    Packaged:     230mm (w) x 105mm (h) x 95mm (d)



Visit manufacturers website for more information

Specifications

Microphone Preamp
Mic Gain Range: 58dB
Line Gain Range: 58dB (-10dB pad)
Phantom Power: 48V +/-4V @ 10mA/Channel (only 2 channel available on USB-A host computers
Mic EIN: <-128dBu
CMRR: >85dB @ 1kHz
Maximum Input Level: +16dBu
Input Impedance (Mic): >3kΩ Balanced
Input Impedance (Line): >10kΩ Balanced
Frequency Response: +/-0.5dB 10Hz to 40kHz
Crosstalk: <-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): <0.0015%
SNR: 100dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

DI
D.I Gain Range: 58 dB
Maximum Input Level: +10dBu
Input Impedance: 1MegΩ Unbalanced
Frequency Response +/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 100dB
1/4” Jack: TIP (Hot) & SLEEVE (Shield)

ADC Inputs
Digital Reference Level: 0dBFS = +8dBu
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.001%
Dynamic Range: 113dB A-weighted

DAC Outputs
Maximum Output Level: +11dBu
Digital Reference Level: 0dBFS = +11dBu
Output Impedance: <100Ω Balanced
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: <-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)

Headphone Output
Output Impedance: <50Ω
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
Max Level Into 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack: TIP (Left), RING (Right) & SLEEVE (Shield)

DXP Mixer Latency
44.1 kHz 0.594ms
48.0 kHz 0.552ms
88.2 kHz 0.302ms
96.0 kHz 0.281ms

DAW Playback Latency
44.1 kHz ~2.5ms
96.0 kHz ~2ms

DAW Software Monitor Latency
44.1 kHz 5ms
96.0 kHz 4.1ms

USB 2.0 High Speed
o. Of Input Channels 24 Analogue
No. Of Output Channels 4 Digital
Connector: USB Type-C
Included Cables: 1m USB 2.0 Type-C to USB Type-C

Features

- 4 x EVO Mic Pres
- Class Leading Converters
- Smartgain
- Smart Touchpoints
- JFET Instrument Input
- 2 x Stereo Speaker Outputs
- 2 x Headphone Outputs
- Low Latency Software Mixer
- Audio Loop-back
- USB2.0 Bus Powered
- Phantom Power
- Free Software + Plugins
