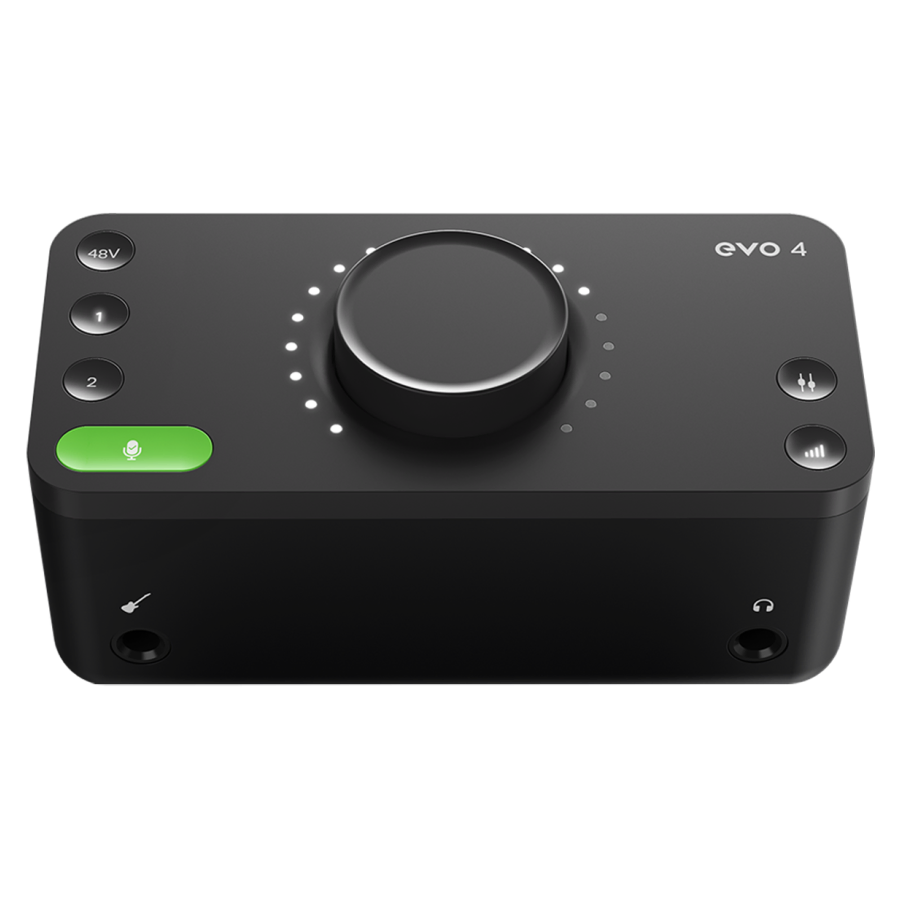

Audient EVO 4 USB Audio Interface - 2 In - 2 Out Featuring Analogue Preamps and Smart Gain Technoloy AUD-EVO4 $ 199 $230.00
How to get it Learn More
Store Click & Collect - Available In Stock
Online In Stock
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

At Mooloolaba Music, we are delighted to introduce the Audient EVO 4 USB Audio Interface, a remarkable piece of technology that will elevate your recording experience.

With the ability to capture both microphones and instruments, the EVO 4 allows you to record audio directly onto your computer. It boasts two award-winning EVO Mic preamps, complemented by cutting-edge converter technology that ensures your audio is treated with the utmost respect. Featuring intelligent mic preamps equipped with Smartgain to set their levels automatically, along with user-friendly controls and an impressive suite of essential professional features, the EVO 4 transcends the typical audio interface experience, redefining the way you create.

Drawing on over 25 years of engineering expertise, our analogue mic preamp has been meticulously crafted to provide the most accurate and pristine version of your recordings, regardless of the source. You can trust in the EVO 4 for exceptional sound quality every single time.

The EVO preamp seamlessly merges the strengths of both analogue and digital realms. It not only retains the sonic benefits of a traditional analogue mic preamp but also incorporates digitally controlled precision for gain adjustment. This innovative design allows you to set your levels with precision, down to the decibel.

If you have questions or would like to learn more about its features, feel free to reach out to one of our knowledgeable staff members at Mooloolaba Music for a thorough explanation today.

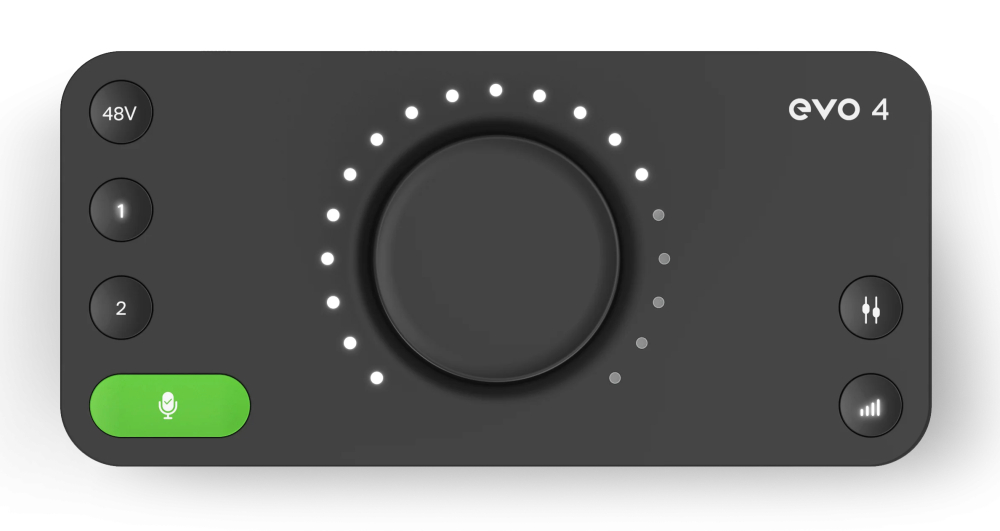

Audient EVO 4 Mooloolaba Music



3-year Limited Warranty to original purchaser

Weight & Dimensions
Weights:     Unit:     360g
    Packaged:     600g
Dimensions:     Unit:     140mm (w) x 67mm (h) x 67mm (d)
    Packaged:     172mm (w) x 88mm (h) x 97.5mm (d)

Visit manufacturers website for more information

Specifications

Microphone Preamplifier
Mic Gain Range: 58dB
Line Gain Range: 58dB (-10dB pad)
Phantom Power: 48v +/-4v @ 10mA/Channel
Mic EIN: <-128dBu
CMRR: >85dB @ 1kHz
Maximum Input Level: +16dBu
Input Impedance (Mic): >3kΩ Balanced
Input Impedance (Line): >10kΩ Balanced
Frequency Response: +/-0.5dB 10Hz to 40kHz
Crosstalk: <-105dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): <0.0015%
SNR: 100dB
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I
D.I Gain Range: 58 dB
Maximum Input Level: +10dBu
Input Impedance: 1MegΩ Unbalanced
Frequency Response +/-0.5dB 10Hz to 20kHz
THD+N @ 0dBu (1kHz): <0.3%
SNR: 100dB
1/4” Jack: TIP (Hot) & SLEEVE (Shield)
ADC Inputs
Digital Reference Level: 0dBFS = +8dBu
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -105dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.001%
Dynamic Range: 113dB A-weighted
DAC Outputs
Maximum Output Level: +11dBu
Digital Reference Level: 0dBFS = +11dBu
Output Impedance: <100Ω Balanced
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: <-110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
Headphone Output
Output Impedance: <50Ω
Frequency Response: +/-0.5dB 10Hz to Fs/2
Crosstalk: -110dBu @ 1kHz
THD+N @ -1dBFS (1kHz): <0.0015%
Dynamic Range: 113dB A-weighted
Max Level Into 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
Max Level Into 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
1/4” Jack: TIP (Left), RING (Right) & SLEEVE (Shield)
DSP Mixer Roundtrip Latency:
44.1 kHz 0.594ms
48.0 kHz 0.552ms
88.2 kHz 0.302ms
96.0 kHz 0.281ms
DAW Playback Latency
44.1 kHz ~2.5ms
96.0 kHz ~2ms
DAW Software Monitoring Latency
44.1 kHz 5ms
96.0 kHz 4.1ms
USB 2.0 High Speed
No. Of Input Channels 2 Analogue
No. Of Output Channels 2 Analogue
Connector: USB Type-C
Included Cables: 1m USB 2.0 Type-C to USB Type-A

Features

- 2 x EVO Mic Pres
- Class Leading Converters
 - Smartgain
- Smart Touchpoints
- JFET Instrument Input
- Speaker Outputs
- Headphone Output
- Compatible with Mac, Windows and iOS
- Monitor Mix
- Monitor Pan
- Audio Loop-back
- USB2.0 Bus Powered
- Phantom Power
- DAW Controlled Mic Pre
- 24bit / 96kHz
- Free Software + Plugins
