Where TS3 exceeded expectations, TS4 redefines them completely.
Building on the legacy of our best-selling TrueSonic speakers, the TS4 Series delivers increased power, clearer sound, and advanced Bluetooth functions including streaming, speaker linking, and App control.
Compact, lightweight, and designed for reliability, the new TS4 Series makes it simple to get great live sound at every event.

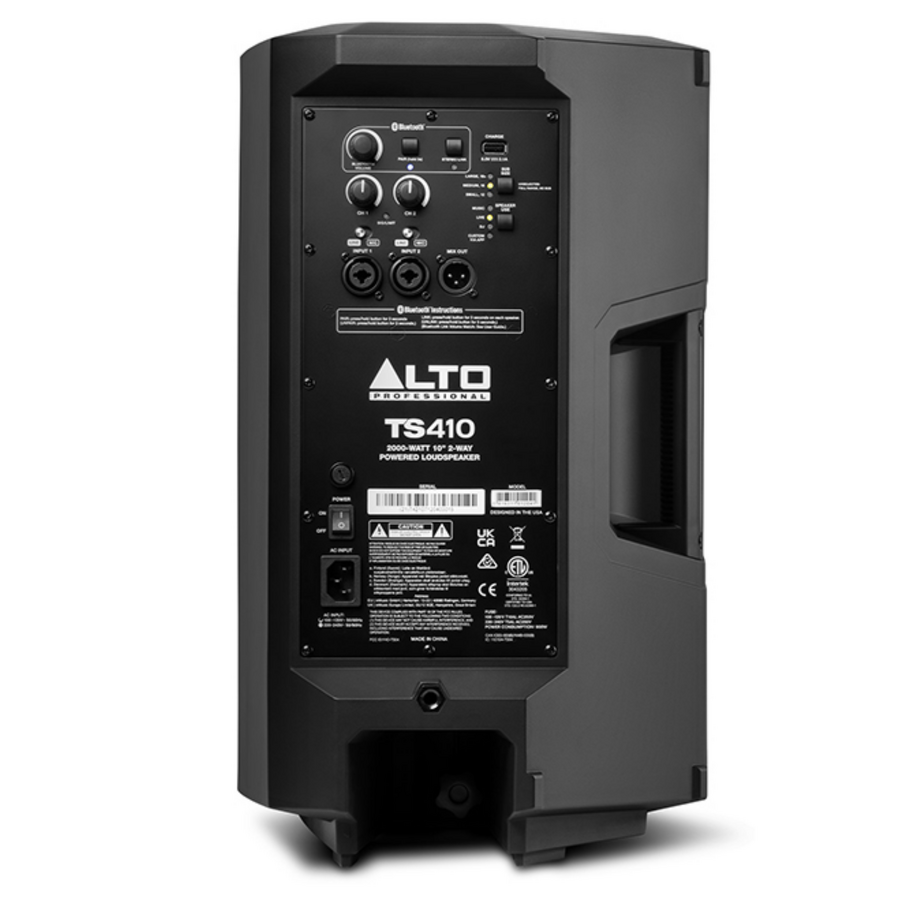

Output Power: 2000 W peak (1300 LF + 700 HF), 1000 W continuous RMS (650 LF + 350 HF) Low-Frequency Driver: 10.0” driver, 2.0” (50 mm) high-temperature voice coil. 1 x 650 W RMS @ 2 Ω. High-Frequency Driver: 1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 350 W @ 4 Ω. Crossover Frequency: 2 kHz Maximum SPL: 130 dB (peak), 127 dB (continuous) (dB-SPL @ 1 m) Frequency Response: 57 Hz – 20 kHz (+/-3 dB) Frequency Range: 48 Hz – 20 kHz (-10 dB) Horn Coverage: 90° horizontal x 60° vertical (nominal) Connectors: (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link) ,(1) IEC power cable input Input Impedance Line: 10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K Line Gain/Volume Control Range: -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output Mic/Inst. Gain/Volume Control Range: -∞ to +50 dB USB Charging Port: 5V 2.1A Controls: Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button Indicators: (1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green) Power Connection: IEC Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz Consumption: 900W Fuse: 100-120V T10AL AC250V; 220-240V T5AL AC250V Protection: Electronic clip, thermal, and transducer overdrive protection Enclosure: Injected Molded Enclosure and Perforated Metal Grille Mounting/Installation: Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position Operating Temperature: -10°C to 45°C (14°F to 113°F) Dimensions: (height x width x depth)21.1” x 12.6” x 12.5” / 536 x 320 x 317 mm Weight: 26.0 lbs. / 11.8 kg
- 2000 W peak (1300 LF + 700 HF), 1000 W continuous RMS (650 LF + 350 HF) - FREE Alto App (iOS/Android) for remote configuration and control - Bluetooth® audio streaming direct from device - On-board DSP with 4 Speaker Use modes (inc. Custom EQ via App) - True Wireless Stereo speaker linking via Bluetooth® - Integrated 3-channel mixer with dual XLR ¼-inch combo inputs, mic/line switches and independent level controls - XLR Mix output, Speaker Use, and Sub Size Controls - 10” driver, 2.0” (50 mm) high-temperature voice coil - 1” exit ceramic driver with 1.4” (35 mm) coil - Lightweight enclosure for easy transport, set up and installation - Versatile design - pole-mountable, wedge monitor or flown application with integral M10 suspension points - Powerful and efficient class D amplifiers with fanless cooling design to run cleaner, quieter and with greater long-term reliability - Designed and tuned in the USA
Please Note: This item may be on display at the Mooloolaba Music Shop and may have been available for demonstration to in store patrons. We take careful and meticulous care, boxing and cleaning of your product before the shipping or selling of an item. If you do want photos before making a purchase please call our shop where one of our staff can assist in sending more detailed images.
Mooloolaba Music reserves the right to cancel, at any time before delivery and for whatever reason, an Order that it has previously accepted. Mooloolaba Music may do this for example, but without limitation, where:
a) Mooloolaba Music's suppliers are unable to supply Goods that they have previously promised to supply (b) an event beyond Mooloolaba Music's control, such as storm, fire, flood, earthquake, terrorism, power failure, war, strike or failure of computer systems, means that Mooloolaba Music is unable to supply the Goods within a reasonable time (c) Goods ordered were subject to an error on the Website, for example, in relation to a description, price or image, which was not discovered prior to the Order being accepted; (d) The products shown in the images above product may differ to the purchased product. Changes could include, different stands, treatments, slight variations in colour, In-built batteries and charging ports. Please contact our team for further clarification.
We ask that you research parts carefully before buying. Purchase of any non-licenced part as a replacement spare part is at your own risk. Some branded replacement parts also require professional installation to fit correctly. If in doubt we will be happy to advise further and confirm suitability before purchase.
