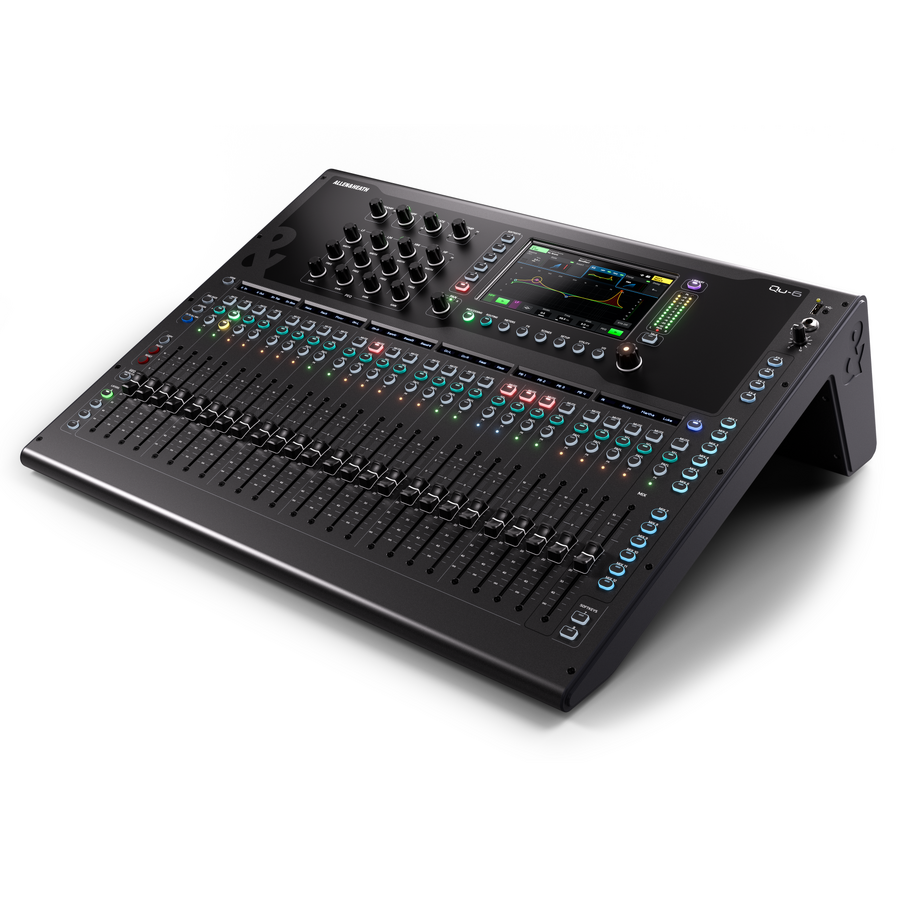

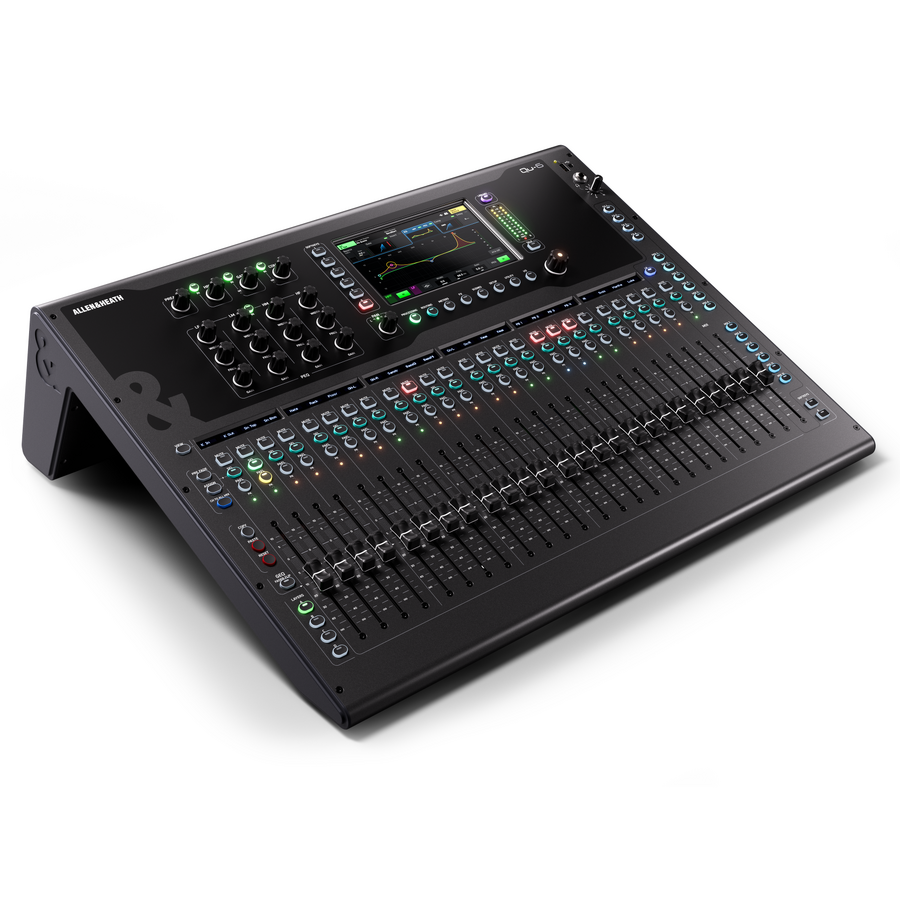

Allen & Heath AH QU-6 Digital Mixer

Edit Product

SKU: AH-QU-6

UPC:

Not to MusiPos

RRP: $6299

Stock:
1 — Primary Warehouse

tik1 | tik2 | tik3

On Sale

Description

Allen & Heath’s legendary digital mixer is reborn, supercharged with a 96kHz XCVI core for DEEP Processing capabilities, increased channel count with fully flexible patching across 4 customisable layers, a completely redesigned user interface, significant hardware upgrades, plus extended connectivity and optional Dante.

Qu-6

Compact 38in/24out 96kHz Mixer

25 100mm Motorised Faders
24 XLR/Jack ‘Combi’ Mic/Line Input Sockets
16 XLR Output Sockets

All New Hardware.

The new Qu retains the much-loved appearance and form factor of the original Qu series, but with multiple hardware improvements to elevate the sonic performance and mixing experience.

Audio
Updated microphone preamps and high-performance 96kHz AD/DA converters combine to deliver pristine audio to and from the XCVI core, preserving every detail of the source.

Control

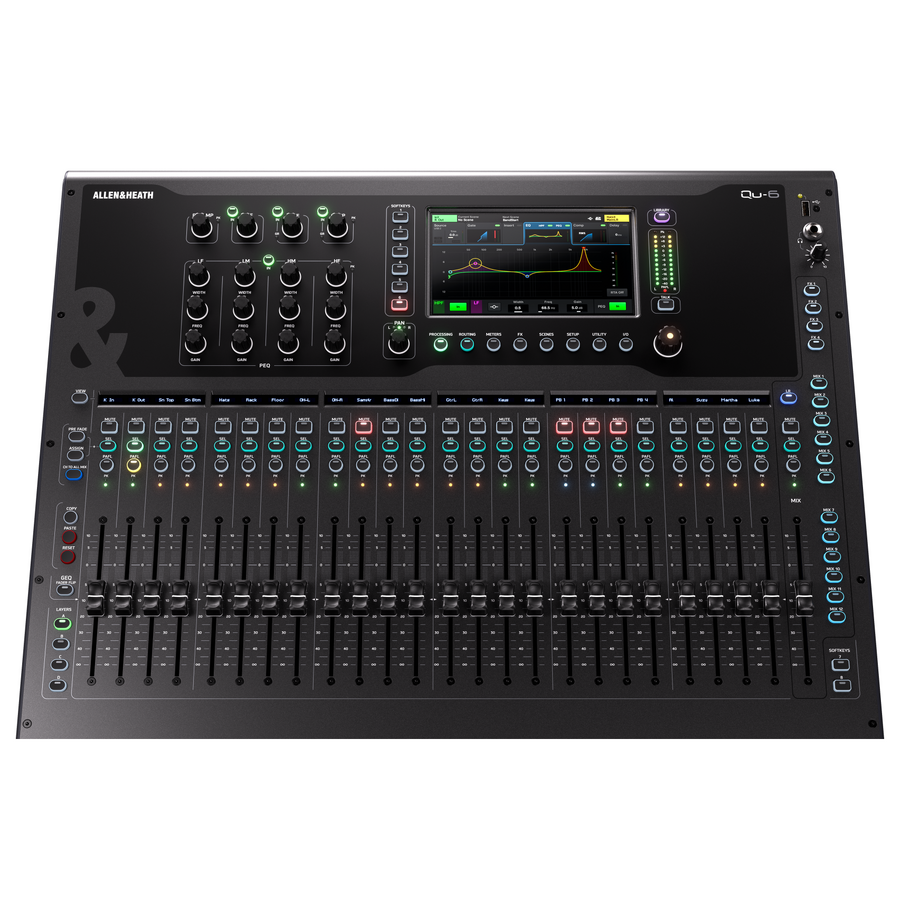

Every channel now features a channel display – showing channel name, channel type, or socket number – and a chromatic channel meter for at-a-glance level information, and the new touchscreen accommodates a completely redesigned user interface.

Updated Workflow

The original Qu series was well loved for its ease and speed of use, making it the perfect mixer for engineers coming from the analogue world. The new Qu takes this further, maintaining a focus on “walk up and mix” usability while adding 4 fully customisable layers, more assignable SoftKeys for workflow optimisation, and flexible routing options in addition to the classic 1:1 Qu routing, all accessible via a newly developed, fast and responsive, user interface.

Capture & Playback

Reliable Recording and Playback. Anywhere.

Every Qu model is packed with versatile recording and playback options, with an integrated 32×32 USB-C audio interface, 32-channel multitrack support via SD card, and simple stereo recording and playback through the USB-A port, whatever your application.

SLink

Everything I/O Compatible

Thanks to its SLink port, Qu can be connected to the Everything I/O family of rack and stage box expanders making it a flexible, mix ‘n’ match solution for owners of other Allen & Heath digital systems. It can even be connected directly to other Allen & Heath consoles with up to 128×128 channels of 96kHz audio available for patching.

DEEP Processing. Assistive Tools.

Qu is now DEEP Processing ready, bringing acclaimed add-ons from our flagship dLive system to the Qu platform for the first time. In addition, Qu now features the Feedback and Gain Assistants from the CQ series to take the stress out of setup and speed up your soundchecks.

Gain Assistant

Faster Setups

Adjusting the gain for each channel might not be the most thrilling task, and it can take up a lot of your setup time when you have multiple channels to manage.

Qu’s Gain Assistant streamlines this process by quickly and precisely setting the ideal gain level for one or more input channels, while continuously monitoring levels during the performance to avoid any unwanted peaks or surprises.

Feedback Assistant

Say Goodbye to Feedback

Qu’s easy to use Feedback Assistant automatically identifies and removes problematic frequencies with up to 16 filters per output, allowing you to mix with confidence and put feedback worries behind you.

Specifications

Processing & FX

96kHz XCVI Core
6 Multi-FX Engines with dedicated Stereo Returns
DEEP Processing Ready

Mix Architecture

38 Inputs to Mix (32x Mono/Linkable, 3x Stereo)
12 Mixes (6 Mono/Linkable Aux/Group, 6 Stereo Aux/Group)
4 Mono/Linkable Matrix
Stereo Main LR Output

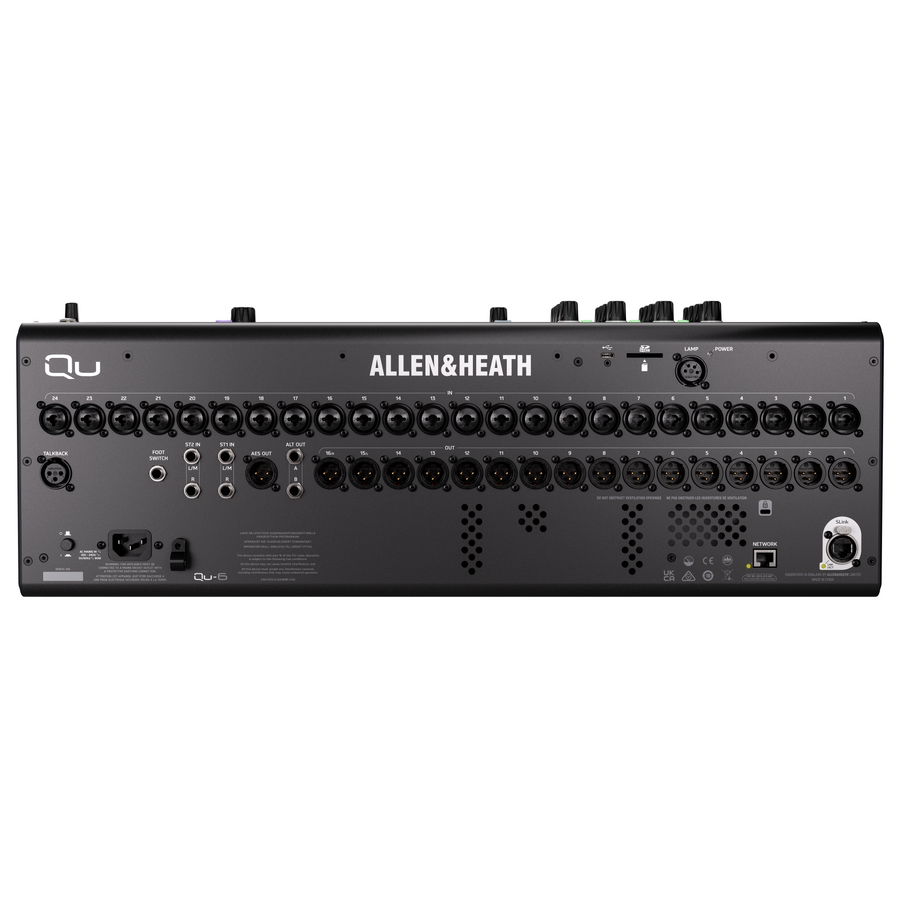

I/O

24 XLR/Jack ‘Combi’ Mic/Line Input Sockets
2 Stereo Line Input Sockets (each 2x TRS)
16 XLR Output Sockets
1 XLR Talkback Socket
2 TRS Output Sockets
1 AES3 Stereo Digital Output Socket
128×128 Intelligent SLink Port for Everything I/O expansion and system connections
16×16 48/96 kHz Dante interface with dedicated locking EtherCon port (Qu-6D only)
Stereo Headphone Output

Control

7” Capacitive Touchscreen
25 100mm Motorised Faders
4 Channel Strip Layers
Remote control via free apps – Windows/MacOS/iOS/Android
8 SoftKeys
Configurable single/dual Footswitch Connection

Recording & Playback

USB-A For stereo audio record/playback and data transfer
USB-C Audio interface for multichannel record/playback (32×32)
SD Card Slot for multichannel audio recording or playback (16×16@96kHz, 32×32@48kHz)

Misc

12V Lamp Socket
Configurable Chromatic Channel Meter LED’s

Features

19” Rack Mountable
16 Mono Mic/Line Inputs (TRS + XLR)
Recallable AnaLOGIQ^TM Preamps
3 Stereo Inputs (TRS)
12 Mix Outputs (XLR)
7 Monitor Mixes (4 mono + 3 stereo)
4 FX Engines
2 dedicated FX Sends / Returns
4 Mute Groups
4 DCA Groups
AES Digital Out
24×22 USB Audio Interface
dSNAKE^TM Remote Audio Port
17 Motor Faders
800×480 Touchscreen
4 Soft Keys

Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
Automatic Mic Mixer
Channel Ducker on all Inputs
ProFactory Mic Presets
RackFX Library
Built-in Signal Generator
RTA with Peak Band indication
Spectrogram to aid feedback elimination and room acoustics
Qu-Drive Direct Multitrack Recording / Playback on USB drives
DAW MIDI Control
Qu-Pad iPad App
Qu-You iPhone / Android personal monitoring app
Qu-Control customisable iOS app for simple wireless control
Compatible with ME Personal Mixing System

Suitable for:
- Live
- Studio
- Streaming
- A/V Install
- Corporate Audio
- Houses of Worship

Specifications

SKU: AH-QU-6
Model #: AH QU-6
Barcode: 935248000122
Brand: Allen & Heath

Warranty

1 Year
