Description

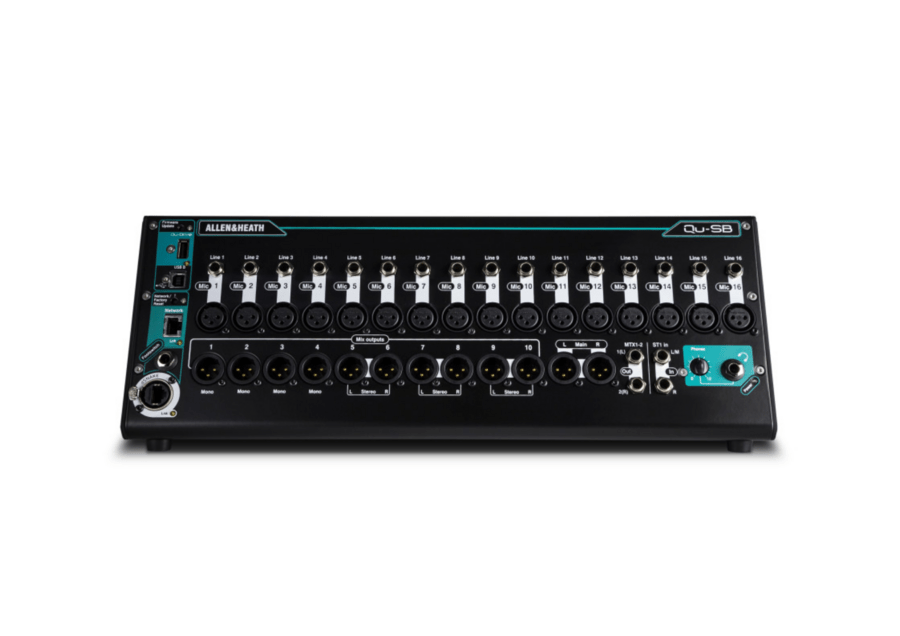

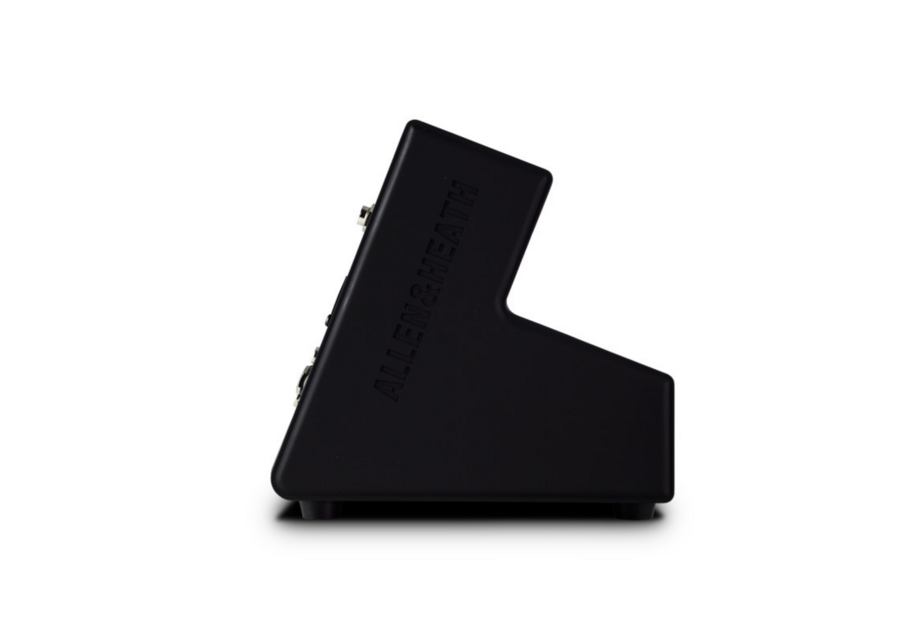

The Qu-SB is an ultra-compact digital mixer designed to allow you to mix from anywhere in the venue via wireless control, and provides a smart, portable solution for performing bands and artists.

Qu-SB is portable enough to carry under one arm and comes loaded with our highly acclaimed suite of FX emulations and dynamics, making it a smart replacement for an old analogue mixer and a rack full of outboard FX.

  • Inputs: 16 Mono / 1 Stereo
    • Expandable to 32 mono / 3 stereo
  • Mixes: 4 Mono / 4 Stereo / LR
    • Expandable to 4 Mono / 7 Stereo / LR
  • Matrix: 2 Stereo
  • 32x32 USB Audio Interface
  • Comprehensive Channel Processing and FX
  • Range of Remote Expanders
  • Suitable for:
    • Live
    • Studio
    • Streaming
    • A/V Install
    • Corporate Audio
    • Houses of Worship

Features

  • 16 local Mono Mic/Line Inputs (TRS + XLR)
  • Recallable AnaLOGIQTM Preamps
  • 1 Stereo Input (TRS)
  • 12 local Mix Outputs (XLR)
  • 1 Stereo Output (TRS)
  • Expandable up to 32 input, 24 out using dSNAKE AudioRack
  • Up to 11 Monitor Mixes (4 mono + 7 stereo)
  • 4 Stereo Groups (switchable to Mix mode)
  • 4 FX Engines
  • 4 dedicated FX Sends / Returns
  • 4 Mute Groups
  • 4 DCA Groups
  • 32×32 USB Audio Interface
  • Qu-Drive Multitrack Recording / Playback direct to USB device
  • dSNAKETM Remote Audio Port

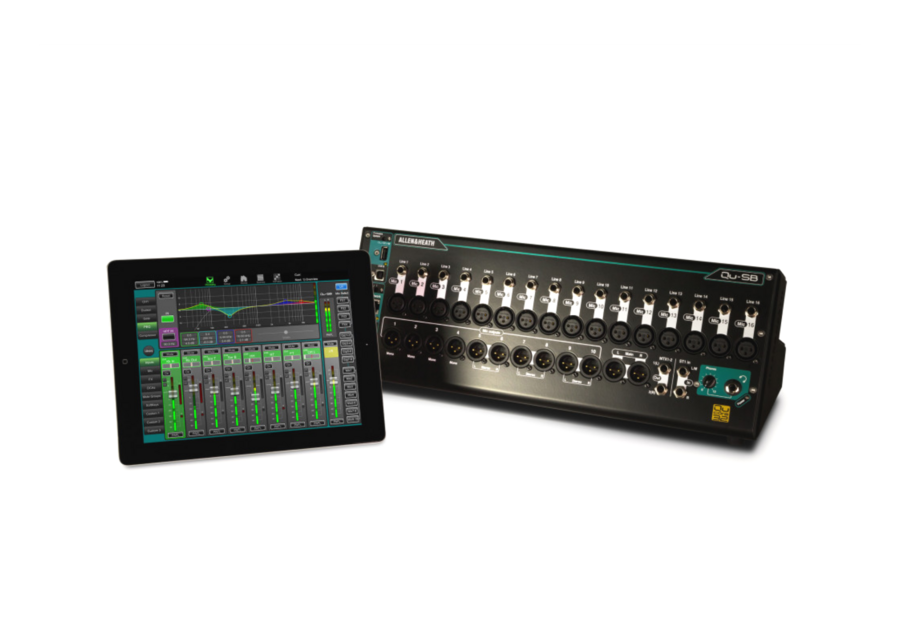

  • Qu-Pad fully-featured iPad App
  • Qu-You iPhone / Android personal monitoring app
  • Qu-Control customisable iOS app for simple wireless control
  • Trim, polarity, HPF, gate, insert, 4-band PEQ, compressor, delay on all Inputs
  • Insert, 4-band PEQ, 1/3 octave GEQ, compressor, delay on all Outputs
  • Automatic Mic Mixer
  • Channel Ducker on all Inputs
  • ProFactory Mic Presets
  • RackFX Library
  • Built-in Signal Generator
  • RTA with Peak Band indication
  • DAW MIDI Control
  • Compatible with ME Personal Mixing System
  • 19” Rack Mountable with optional rack ears

Specifications

SKU
QU-SB
Model #
QU-24C
Barcode
930248001606
Brand
Allen & Heath

Warranty

1 Year
