Mooloolaba Music is excited to announce the availability of the Allen & Heath DX164-W Wall Expander in our collection.
This innovative device serves as a wall-mounted expander that enhances the capabilities of dLive, Avantis, SQ, and Qu* mixers, as well as AHM audio matrix processors by adding remote input and output options.

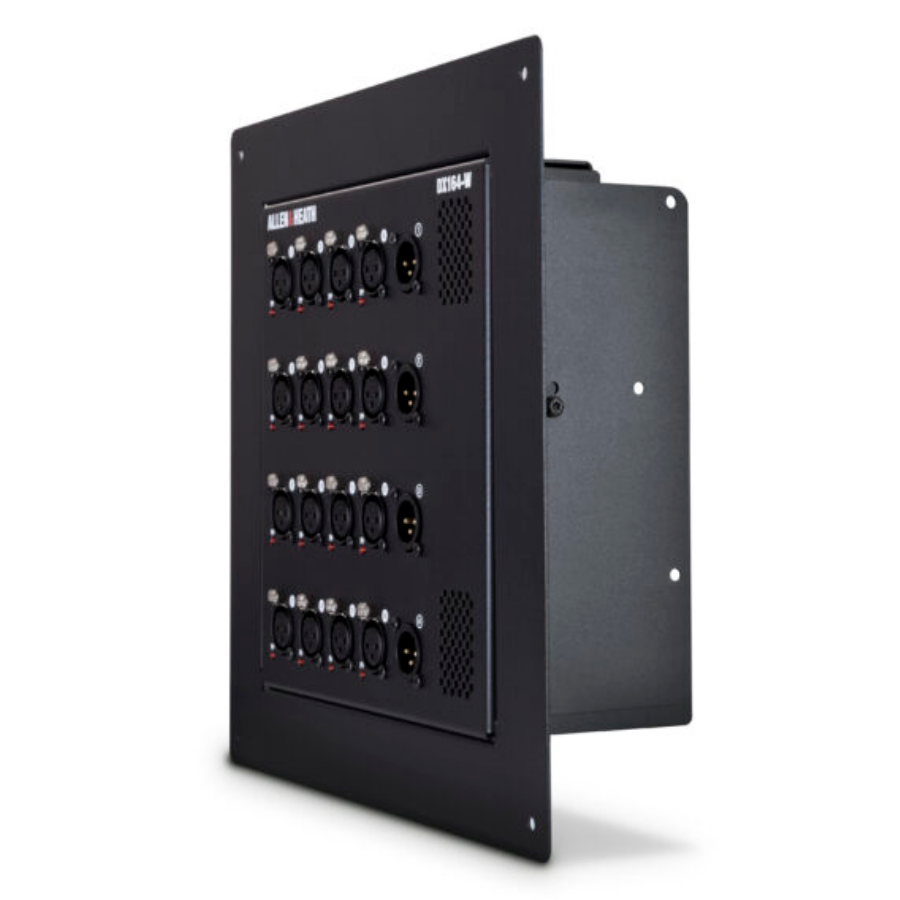

You have versatile installation choices with the DX164-W; it can be mounted on a wall or on the floor. Its reversible mounting frame supports both in-wall and on-wall setups, and with the aid of custom brackets, it can seamlessly fit into a standard NEMA box or be positioned within a floor pocket for stage applications.

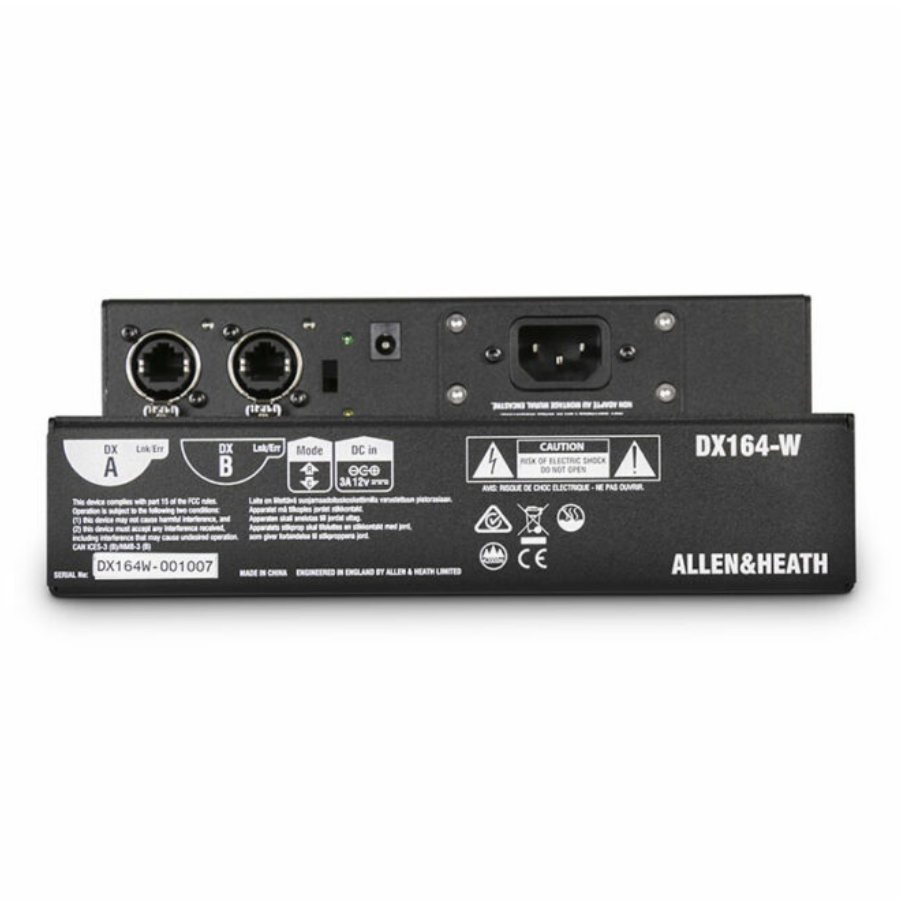

For optimal flexibility, the DX164-W can be situated up to 100 meters away from the mixer. It connects using a single Cat5e cable to the mixer or an upstream DX Expander through a robust EtherCon port. Additionally, a secondary locking EtherCon port is included for a redundant connection to compatible devices or for daisy-chaining with a downstream DX Expander to expand remote I/O further.
For installation convenience, the IEC mains power inlet can be substituted with a gland module and screw terminals for a fixed setup, while a DC 12V backup input is also available to ensure reliability.
We invite you to visit our store where our knowledgeable staff will be happy to guide you through the impressive features of the DX164-W.

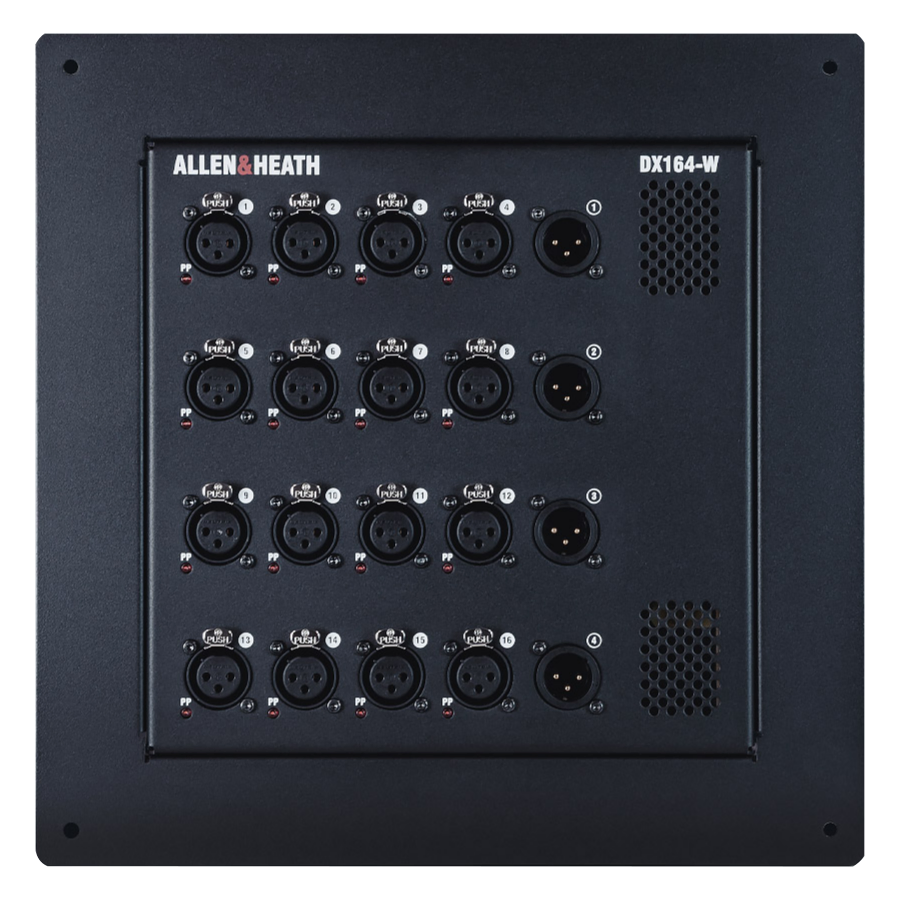

16 Mic Preamps
+60dB of gain, Phantom Power indicators and -20dB pad for line level sources
4 Line Outs
Balanced, relay protected line outputs on XLR.
Redundant and Cascade Modes
Redundant mode supports dual-cable connection to compatible hardware. Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port.
Plug-and-Play
No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.
