Quad

Do More With Four.

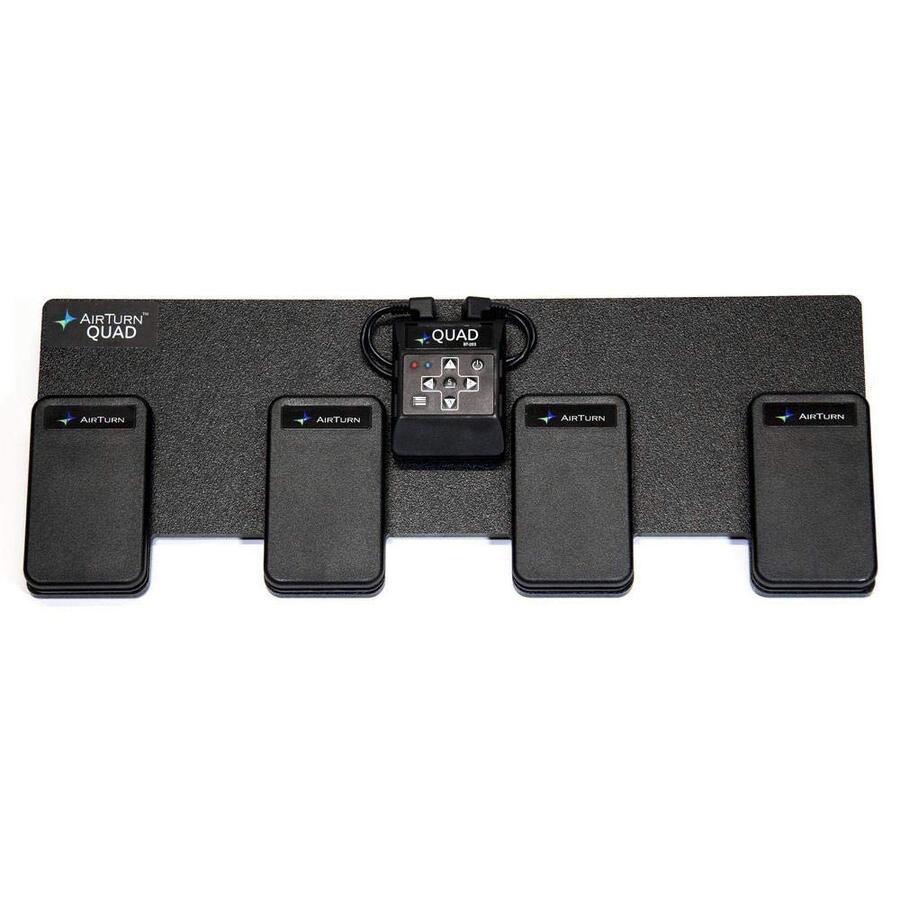

Turn pages, navigatee setlists, transpose keys, toggle backing tracks, trigger metronomes, and even control guitar/bass/amp effects. This AirTurn QUAD 4-pedal board comes with the AirTurn Bluetooth transceiver, 4 ATFS-2 black silent pedals that connect to the transceiver, the AirTurn non-slip pedal board, and a USB recharging cable. The Bluetooth transceiver may be easily removed for use with other applications.

The transceiver features an internal lithium battery that can be used for up to 100 hours on standby. It connects wirelessly to your tablet or MAC/PC computer via Bluetooth and may be easily. The ATFS-2 black pedals are constructed of nearly indestructible polycarbonate plastic and feature a proprietary "mechanism-free" switch system for perfectly silent operation.

The transceiver may also be removed and used as a hand-held remote.

Many apps now support the QUAD!

Includes manual and charging cable.

Here is an example of some of the multi-pedal functions that can be customized from OnSong for iOS:

• None no action is performed.
• Scroll Up scrolls the page up by 75% of the screen height.
• Scroll Down scrolls the page down by 75% of the screen height.
• Next Song goes directly to the next song in the set.
• Previous Song goes directly to the previous song in the set.
• Toggle Audio starts and stops playback of the associated backing track.
• Toggle Autoscroll starts or stops the page from autoscrolling.
• Toggle Metronome starts or stops the metronone at the tempo set for the current song.
• Show/Hide Menubar shows or hides the menubar.
• Show Songs List shows the songs menu (note the songs menu cannot be rehidden because it receives the input of the keyboard at this point)
• Transpose Up transposes the song up a half step.
• Transpose Down transposes the song down a half step.
• Tempo Up increases the tempo of the current song by one BPM.
• Tempo Down decreases the tempo of the current song by one BPM.
• Volume Up increases the volume of the device output by 10%.
• Volume Down decreases the volume of the device output by 10%.
• Autoscroll Faster speeds up the autoscroll by reducing the duration of the song by 30 seconds.
• Autoscroll Slower slows down the autoscroll by increasing the duration of the song by 30 seconds.

The 4 pedal AirTurn QUAD can also be configured to work with most Mac and PC programs that can accept Page Down/Page Up and directional arrow keyboard commands.

Weight: 2.8 lbs

Dimensions: 6.25"x16.5"x2.25"

Package includes:

• AirTurn Bluetooth Transceiver
• Four ATFS-2 silent pedals mounted on a pedal board
• USB cable for charging
• Instruction manual
• Quick Start Guide
