Description

The dual para eq is a compact, parametric 2-band-equalizer, which you can apply to a signal chain to lift or lower certain frequencies.

Parametric means not only lifting or lowering, but also adjusting separately position and width of frequency bands. So it does not only enable you to equalize frequency response errors (hence the name equalizer) and to suppress feedbacks or resonance peaks, but it may also be used as a flexible tone control for purposeful sound manipulations.

According to its application in a signal chain, the input stage of the dual para eq has been laid out unlike an instrument preamp (e.g. for pickups or microphones) as pure level adjustment stage. With the phase switch the phasing of the processed signal can be reversed if necessary.

Finally the entire dual para eq device can be bypassed by pressing the bypass switch, allowing for a comfortable A/B comparison.

Specifications

Series Pocket Tools
Type Parametric EQ
Unique Features gain control, phase, bypass, two parametric equalizer - level, bandwidth and switchable, frequency, line out
Weight 420g (0.92 lbs)
EQ Parametric equalizer with switchable frequency range. Level (15 dB), Bandwidth (1 octave - 1/6 octave), Frequency (f1= 90 Hz to 1.6 kHz, f2=680 Hz to
H X W X D 65mm (2.56") x 105mm (4.13") x 135mm (5.31")
Power Requirement mains voltage - 24V DC (external power supply), Power consumption - 4 watt

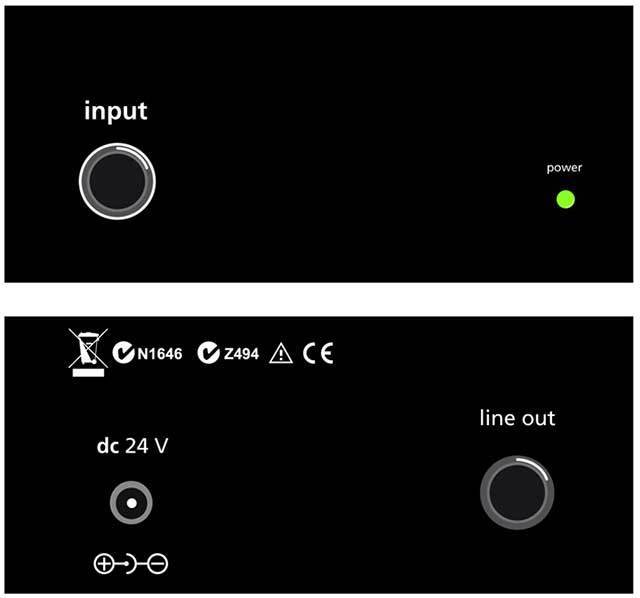

Input One 6.3 mm (1/4") mono jack socket. Input for instruments (pick-ups) and line-level sources (Input impedance 10kOhm)
Cabinet Specifications aluminum
Cabinet Finish anodized black
Phase Inverts the output signal-phase in relation to the input signal-phase from 0 to 180 degrees.
SKU
AERDUALPARAEQ
Barcode
930037012768
Brand
AER

Warranty

1 Year

Please Note: This item may be on display at the Mooloolaba Music Shop and may have been available for demonstration to in store patrons. We take careful and meticulous care, boxing and cleaning of your product before the shipping or selling of an item. If you do want photos before making a purchase please call our shop where one of our staff can assist in sending more detailed images.

Mooloolaba Music reserves the right to cancel, at any time before delivery and for whatever reason, an Order that it has previously accepted. Mooloolaba Music may do this for example, but without limitation, where:

a) Mooloolaba Music's suppliers are unable to supply Goods that they have previously promised to supply
(b) an event beyond Mooloolaba Music's control, such as storm, fire, flood, earthquake, terrorism, power failure, war, strike or failure of computer systems, means that Mooloolaba Music is unable to supply the Goods within a reasonable time
(c) Goods ordered were subject to an error on the Website, for example, in relation to a description, price or image, which was not discovered prior to the Order being accepted;
(d) The products shown in the images above product may differ to the purchased product. Changes could include, different stands, treatments, slight variations in colour, In-built batteries and charging ports. Please contact our team for further clarification.

We ask that you research parts carefully before buying.
Purchase of any non-licenced part as a replacement spare part is at your own risk.
Some branded replacement parts also require professional installation to fit correctly.
If in doubt we will be happy to advise further and confirm suitability before purchase.

Reviews

AER

AER Dual Para EQ Pocket Tool Dual Band Parametric EQ w/Switchable Frequencies

Read reviews · SKU AERDUALPARAEQ
$424.15 RRP $499.00
