Description
The CS10 is a two-way, full-range intelligent loudspeaker, intended for use in a wide variety of applications. Utilizing Adamson’s proprietary network platform, the CS10 employs a redundant MILAN scheme with the ability to daisy-chain networked audio between multiple sources, an analog XLR input and output, as well as on-board DSP and amplification. All features of the loudspeaker are controlled and monitored through Adamson’s proprietary AI software.
Acoustically, the CS10 contains 2x 10-inch Kevlar® Neodymium transducers and a 4” compression driver. The critically optimized sound chamber produces a slightly curved wavefront with a nominal dispersion pattern of 110° x 10° (H x V). The chamber’s efficiency allows for increased vertical dispersion without sacrificing high frequency presence in the farfield. Patented Controlled Summation Technology further eliminates low-mid lobing normally associated with 2-way line source systems.

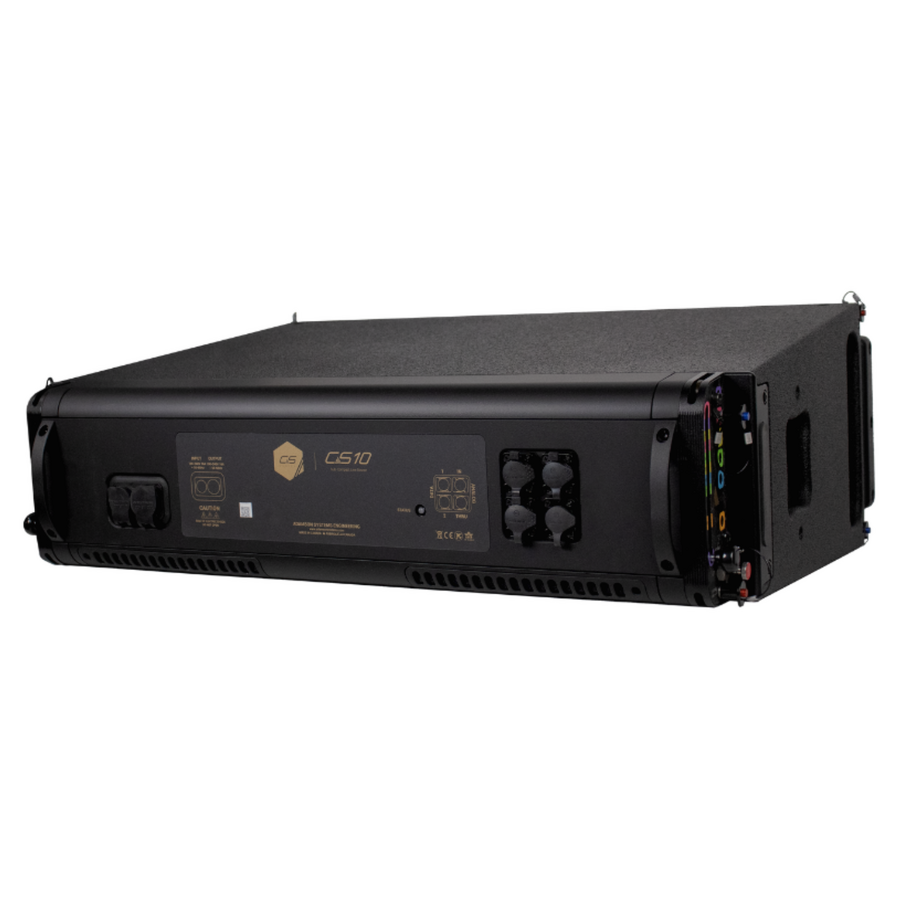

The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with a male and female XLR connector, 2x etherCON connections and an in and through powerCON TRUE1 connection.
Specifications
| Frequency Range (+/-3 dB) | 60 Hz - 18 kHz |
| Nominal Directivity (-6 dB) H x V | 110° x 10° |
| Maximum Peak SPL** | 141.3 dB |
| Components LF | 2x ND10-LM 10” Kevlar® Neodymium Driver |
| Components HF | Adamson NH4 4” Diaphragm / 1.5” Exit Compression Driver |
| Rigging | Slidelock Rigging System |
| Connection | Power: powerCON TRUE1 Network: 2x etherCON Analog: 2x XLR |
| Height Front (mm / in) | 265 / 10.4 |
| Height Back (mm / in) | 178 / 7 |
| Width (mm / in) | 737 / 29 |
| Depth (mm / in) | 526 / 20.7 |
| Weight (kg / lbs) | 31 / 68.4 |
| Amplification | 2 channel Class-D, 2400 W total output |
| Input Voltage | 100 - 240 V |
| Current Draw at 230 V | 0.45 A rms idle, 1.6 A rms long-term, 10 A max peak |
| Supported Processing | Onboard / Proprietary |
- SKU
- ADA-CS10
- Model #
- CS-10
- Barcode
- 939190000008
- Brand
- Adamson
Please Note: This item may be on display at the Mooloolaba Music Shop and may have been available for demonstration to in store patrons. We take careful and meticulous care, boxing and cleaning of your product before the shipping or selling of an item. If you do want photos before making a purchase please call our shop where one of our staff can assist in sending more detailed images.
Mooloolaba Music reserves the right to cancel, at any time before delivery and for whatever reason, an Order that it has previously accepted. Mooloolaba Music may do this for example, but without limitation, where:
a) Mooloolaba Music's suppliers are unable to supply Goods that they have previously promised to supply
(b) an event beyond Mooloolaba Music's control, such as storm, fire, flood, earthquake, terrorism, power failure, war, strike or failure of computer systems, means that Mooloolaba Music is unable to supply the Goods within a reasonable time
(c) Goods ordered were subject to an error on the Website, for example, in relation to a description, price or image, which was not discovered prior to the Order being accepted;
(d) The products shown in the images above product may differ to the purchased product. Changes could include, different stands, treatments, slight variations in colour, In-built batteries and charging ports. Please contact our team for further clarification.
We ask that you research parts carefully before buying.
Purchase of any non-licenced part as a replacement spare part is at your own risk.
Some branded replacement parts also require professional installation to fit correctly.
If in doubt we will be happy to advise further and confirm suitability before purchase.
