Description

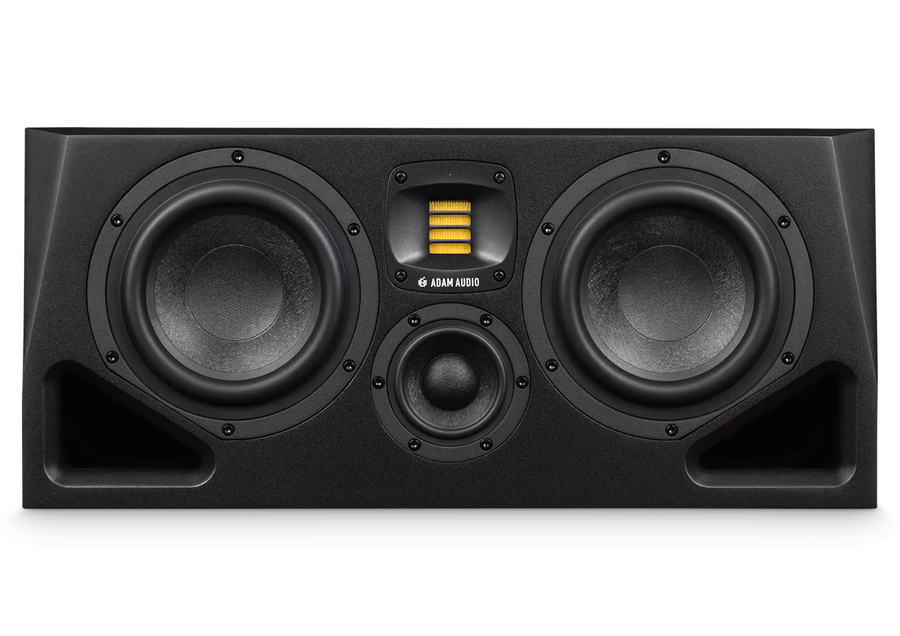

Incorporating two 7-inch woofers, a midrange driver, and ADAM Audio’s X-ART tweeter, the A77H delivers an ultra-wide frequency range.

The addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements.

Features

German Handmade Precision X-ART Tweeter with rotatable HPS waveguide

3.5" DCH Midrange Driver

2 x 7'' Woofer (Multi-Layer Mineral)

Cumulated Amp. Power Peak: 340 W

Frequency Response @ -6 dB: 34 Hz – 45 kHz

Max. peak SPL per speaker at 1 m: 106 dB SPL

Specifications

Acoustics
  • Frequency Response @ -3 dB: 37 Hz – 41 kHz
  • Frequency Response @ -6 dB: 34 Hz – 45 kHz
  • Max. peak SPL per speaker at 1 m (sine bursts): 106 dB SPL
  • Max. peak SPL per speaker at 1 m (IEC-weighted noise): 118 dB SPL
  • Crossover Frequencies: 400 Hz, 3.0 kHz

Drivers
  • Woofer
    • Basket Diameter: 2 x 7″
    • Voice Coil Diameter: 1.5″ (38 mm)
    • Cone Material: MLM
  • Midrange
    • Type: Dome Cone Hybrid (DCH)
    • Basket Diameter: 3.5″
    • Voice Coil Diameter: 1.3″ (33 mm)
    • Cone Material: MLM
  •  Tweeter
    • Type: X-ART
    • Diaphragm Area: 4 inch² (2420 mm²)
    • Equivalent Diaphragm Diameter: 2″ (56 mm)
    • Velocity Transform Ratio: 4 to 1
    • Diaphragm Weight: 0.17 g
    • Waveguide: HPS (rotatable)
    • Waveguide Dispersion: 120° horizontal, 70° vertical

Signal Processing
  • AD converter: 24-bit
  • Internal sample rate: 96 kHz
  • Delay range, resolution: 0 – 10 ms, 0.1 ms
  • Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters

Amplification
  • Woofer
    • Amplifier Type: PWM
    • Peak (10% THD, limiter deactivated): 250 W
    • RMS (1% THD, limiter deactivated): 200 W
  • Midrange
    • Amplifier Type: Class A/B
    • Peak (10% THD, limiter deactivated): 70 W
    • RMS (1% THD, limiter deactivated): 55 W
  •  Tweeter
    • Amplifier Type: Class A/B
    • Peak (10% THD, limiter deactivated): 20 W
    • RMS (1% THD, limiter deactivated): 15 W

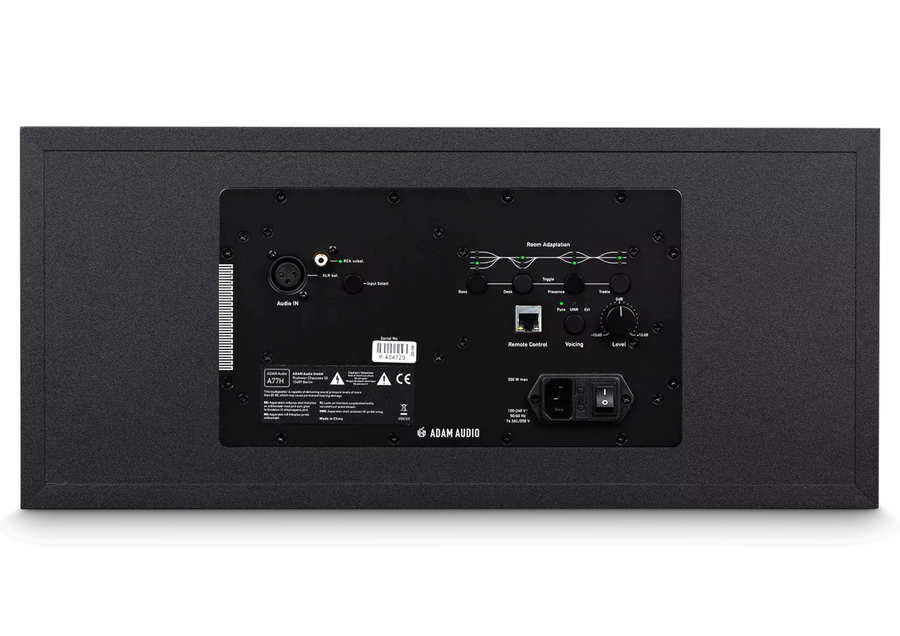

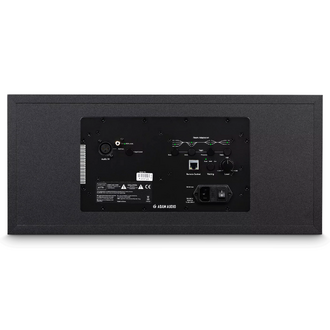

Audio Input Connectors
  • Analog: XLR, RCA
  • Input Impedance: 9 kOhm / 3.3 kOhm
  • Max. Input Level: +19 dBu



SKU
12106800
Model #
12106800
Barcode
930270000108
Brand
Adam Audio

Warranty

2 Years or 5 Year Extended
