Quad Cortex is the most powerful floor modeler on the planet. With 2GHz of dedicated DSP from its Quad-Core SHARC architecture, this ludicrous amount of processing capacity provides limitless sound design possibilities.

We figured out a better way to do modelers

With its massive 7” multi-touch display, Quad Cortex is unbelievably easy to use. Effortlessly create even the most complex signal paths.

Neural Capture

Capture, share and download your favorite rigs’ sounds. Equipped with our unique biomimetic AI technology, Quad Cortex can learn and replicate the sonic characteristics of any physical amplifier, overdrive, and cabinet with unprecedented accuracy.

Unlike any other, our sophisticated neural network algorithm perceives sound akin to human perception, making it the most natural-sounding capture solution on the planet.

We are collaborating with some of the best producers and sound designers to provide an ever-growing collection of free rig captures in addition to our full-circuit models.

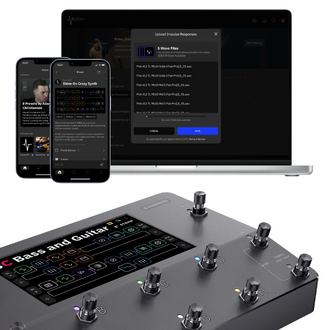

Cortex Cloud

Discover Users, Presets, and Neural Captures via the Cortex Mobile app for iOS and Android devices. Linking your Neural DSP account to your Quad Cortex allows you to create backups, share content, and download items from other users. It also unlocks the Impulse Response Library, where you can transfer IRs to your Quad Cortex and manage the IRs stored on your account.

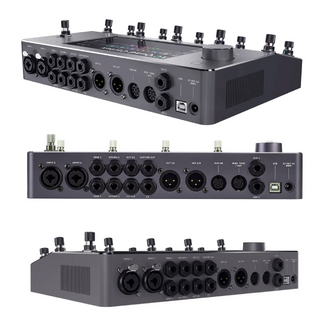

Inputs And Outputs

• Dual Combo Inputs: TS, TRS, and XLR, variable impedance and level controls, built-in microphone preamps, and phantom power supplies.
• Dual effects-loops: ideal for embedding external mono, or stereo effects into your signal chain, as well as additional input/output jacks.
• 1/4” Output jacks: two mono, balanced (TRS) outputs provide pristine sound quality and optimal noise performance.
• XLR Output jacks: two mono, balanced XLR output jacks.
• Headphone Output: ideal for quiet practicing.
• MIDI In, Out/Thru: receive and send MIDI messages to automate switching and control of every parameter in Quad Cortex, as well as controlling other units.
• Dual Expression Inputs: connect up to two expression pedals. They can be assigned to control wahs, volume, as well as pitch-shifting algorithms
• USB: Ultra-low latency audio transmission, firmware updates, MIDI, and more.
• 11 stainless steel stomp+rotary actuators allow for switching and rotational control (just like the footswitches and knobs you are used to, but unbreakable). All audio connectors are Neutrik

Unbelievably Compact

Using advanced mechanical design and manufacturing techniques, we managed to not only build the most powerful floor modeler/multi-effects processor on the planet, we also managed to pack it all in an extremely compact format.

Dimensions

29 x 19.5 x 6.9cm / 11.4" x 7.7" x 2.7"

Weight

1.95kg / 4.2lbs
