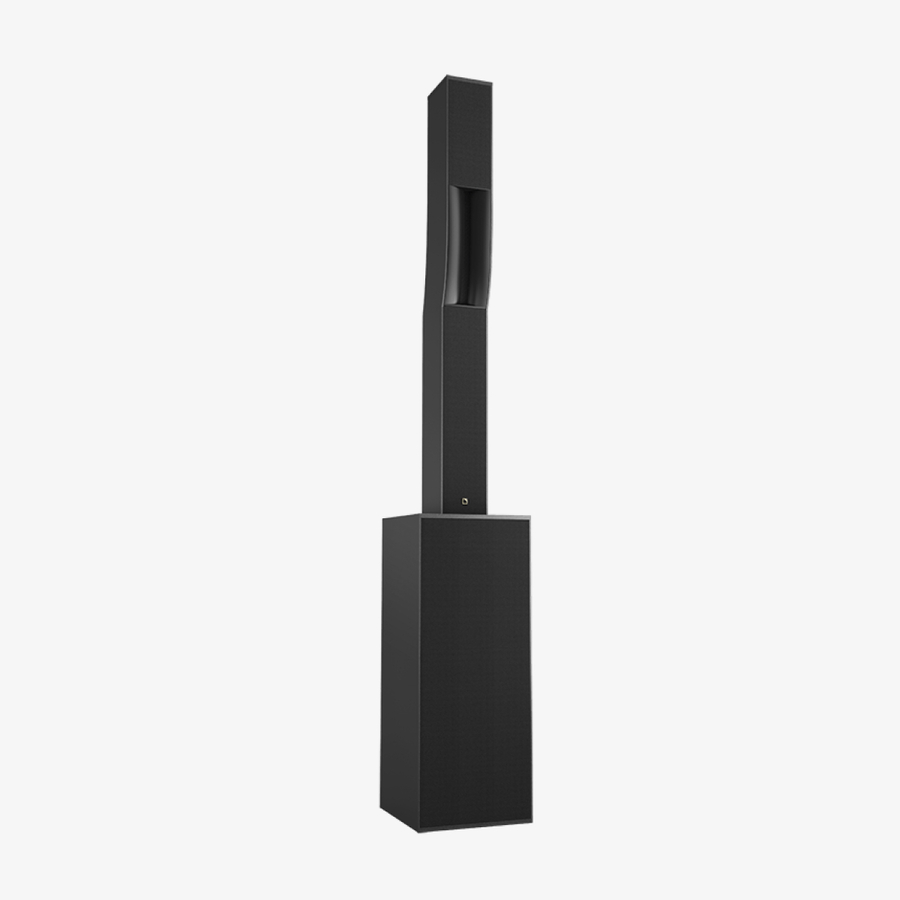

L-Acoustics SYVA Colinear Source System

Loudspeaker SYVA Colinear 2-way Passive; 6 x 5" LF and 3

LAC-SYVA

POA

Description

Syva is a Colinear Source system (patented) suited to medium throw applications. It is designed for professional sound reinforcement and high-end residential applications requiring high fidelity and SPL with minimum visual impact.

The Syva enclosure features six 5” MF speakers providing usable bandwidth to 87 Hz and three 1.75” HF diaphragm compression drivers, loaded by DOSC waveguides in a J-shaped progressive curvature. This transducer arrangement, called Colinear Source, produces an H/V 140° x 26° (+5/-21°) directivity pattern, optimized for ultra-wide horizontal coverage with extended throw capability.

The Syva Low enclosure features two K2 12” drivers and is designed to provide low frequency contour and extended bandwidth to the Syva system (9 dB contour with a low frequency limit at 40 Hz).

The Syva Sub enclosure features one high excursion 12” driver equipped with a KS28 woofer motor and is designed to further extend the bandwidth of the system in the sub frequency domain down to 27 Hz.

Both feature a bass-reflex cabinet equipped with L-Vents, reducing turbulence and port noise at high levels while increasing LF efficiency.

L-Acoustics amplified controllers ensure advanced crossover functions, time alignment, linearization and L-Drive protection of the transducers.

Syva combines the directivity benefits of line length and the coupling of HF DOSC waveguides to achieve a narrow vertical beam that is perfectly controlled down to 300 Hz. Syva focuses energy toward the back of the audience while providing smooth down-fill coverage to the front. Throw and SPL consistency are ensured from front, to back. The combination of extended 35 m throw and ultrawide horizontal dispersion provides exceptional surface coverage for flat audiences.

Colinear System
Syva is a colinear system suited to medium throw applications. It is designed for professional sound reinforcement and high-end residential applications requiring high fidelity and SPL with minimum impact.

Syva features six 5" MF speakers providing usable bandwidth to 87 Hz and three 1.75" HF diaphragm compression drivers, loaded by DOSC waveguides in a J-shaped progressive curvature. This transducer arrangement produces an H/V 140° x 26° (+5/-21°) directivity pattern, optimized for ultra-wide horizontal coverage with extended throw capability.

Its companion Syva Low enclosure features two K2 12” drivers designed to provide low frequency contour and extended bandwidth down to 40 Hz. Syva Sub features one high-excursion 12” driver equipped with a KS28 woofer motor to further extend the bandwidth of the system in the sub frequency domain down to 27 Hz.

Syva can be wall- or pole-mounted, as well as flown, or used alone with its baseplate. Alternatively, Syva can be rapidly mounted on top of Syva Low or Syva Sub using the AutoConnect plug-and-play audio and physical link.

Visit manufacturers website for more information

Features

  • L-Acoustics line source heritage
  • 142 dB max SPL down to 40 Hz (with Syva Low)
  • 35 m throw capability
  • Exceptional coverage capability
  • Streamlined design
  • Plug-and-play package
