- Active 2-way wedge monitor
- Innovative ultra-slim design
- Height 165 mm only
- 400W RMS Class-D amplifier
- Anti-feedback acoustic configuration
- Variable acoustic focus
- Remote control via RDNet
- Exclusive front-rear grille design
Description

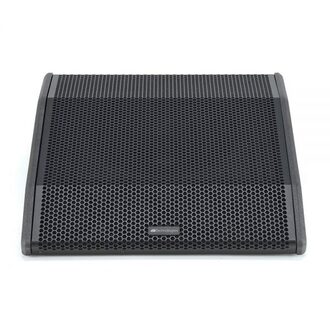

2 Way Active Wedge Monitor
The ultra-slim wedge speaker designed to be discreetly integrated in broadcast studios, theatre stages, congress facilities and wherever an unobtrusive and versatile wedge is needed.
This 2-way system is equipped with 4×4” neodymium HF speakers and 1×10” woofer, placed in an exclusive anti-feedback acoustic configuration. The cabinet is driven by a 400 W RMS Digipro G3 amplifier and full remote control is enabled via RD-Net and Aurora Net software.
Digital Sound Processing allow a variable acoustic focus via on-board presets or via software. As a matter of facts, user can easily adapt the wedge performance to the application in use and to the speakers’ needs, choosing among 4 different options: default, close narrow, close wide, far.
VIO W10’s wooden cabinet comes with a black polyurea finish and an exclusive front-rear-grille design which contributes to a peculiar yet discreet look, with a special attention to details. In facts, an integrated handle is hidden on left side to ease transport and a special groove carved on bottom side facilitates the passage of cables under the cabinet, allowing a clean and tidy look on stage.
Specifications
Technical Data
- Speaker Type: 2-Way Active Wedge Monitor
Acoustical Data
- Usable Bandwith [- 10 dB]: 58 – 15,000 Hz
- Frequency Response [- 6 dB]: 68 – 14,000 Hz
- Max SPL: 126 dB
- HF: 4x 4″ – 1″ v.c. Neodymium
- LF: 1x 10″ – 2.5″ v.c.
- Horizontal Directivity: Dependent on Focus Preset
- Vertical Directivity: Dependent on Focus Preset
Amplifier
- Amplifier: 400 W RMS Class D Digipro® G3
- Cooling: Convection
- Power Supply: Auto-range SMPS
Processor
- Controller: DSP 28/56 bit
- Converter AD/DA: 24 bit/48 kHz
- Limiter: Peak, RMS, Thermal
- Processing (filters): Linear Phase FIR Filters
Input
- Signal Input: 1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service)
- Signal Output: 1xXLR male, 1x RJ45 Link (RDNet)
- Power Socket:
1x PowerCON TRUE1 In
1xPowerCON TRUE1 Out - Controls:
1x Rotary Encoder (8 presets)
1 x Input Sensitivity Encoder
1xMic /line switch
1x On LED
1x Status -LED
1x Signal LED
1x Limiter LED
Mechanics
- Housing: Wooden cabinet, Polyurea painting
- Handles: 1 on left side
- Width: 450 mm (17.71 in)
- Height: 165 mm (6.49 in)
- Depth: 480 mm (18.89 in)
- Weight: 13.7 kg (30.20 lbs)
Note: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
- SKU
- VIO-W10
- Brand
- dB Technologies
