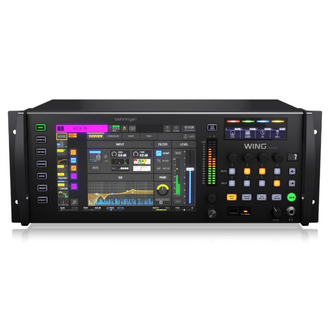

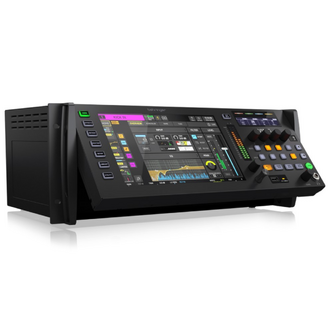

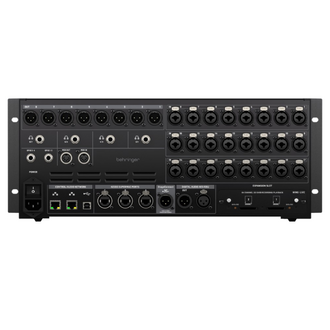

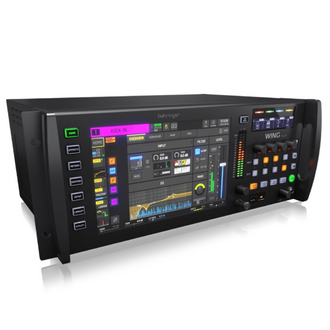

Behringer WING Rack Digital Mixing Console

Description

The Behringer WING Rack features the same processing power, number of channels, expansion slots, effects and digital inputs/outputs of the full-size WING console in a compact rack mountable unit. The WING Rack complments its near-limitless digital connectivity with 24 award-winning Midas Pro preamps, making it an ideal all-in-one solution, even without a separate stage box.

You get full access to all the WING Rack’s functions and parameters from its 10.1-inch capacitive touchscreen, or you can take control via your mobile device or desktop Computer. What’s more, the intuitive Sources paradigm enables you to focus on your source audio rather than the nuts and bolts of your mix.

You can record up to 64 channels directly to dual SD cards, use optional expansion cards to attain Dante support, or deploy the WING Rack’s built-in 48-in/48-out USB audio interface to record straight to your DAW. Furthermore, IEM users will appreciate the WING Rack’s four additional rear-panel stereo outputs and high-performance headphone amplifiers.

Complete with 16 true-stereo processors with Standard and Classic modelled effects, the WING Rack is a top-shelf digital mixer that will elevate the capabilities of any small-scale live sound setup.

Features

- 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
- Continuously adjustable front panel for comfortable mixing experience when mounted in a rack
- 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
- 10.1 inch main display with multi-touch screen and adjustable swivel
- 8 buttons and 4 encoders for standard mixing or transport functions, or with Custom Controls to make WING RACK your personal console.
- Integrated USB Audio/MIDI Interface for 48 audio channels in and out
- Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
- 16 True-stereo effects processing engines, with 80+ world-class algorithms
- 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
- 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
- 40 Stereo Input Channels with 5 variable plug-in processing slots each
- 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
- 8 Mute Groups and 8 DCA's for track grouping and consolidation
- 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
- Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI…
- StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
- 4 additional phones outputs with hi-performance headphone amplifiers for IEM applications
- 4 channel GPIO for controlling almost anything with WING
- 5-Pin MIDI in and out for control and synchronization with external devices
- DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
- Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
- 19" rack-mountable with 4HU form-factor

Specifications

Input/Output Characteristics
Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting)	10 Hz - 20 kHz
Dynamic range, analog in to analog out (typical), XLR / aux	111 dB / 108 dB
A/D dynamic range, preamplifier and converter (typical), XLR / aux	112 dB / 110 dB
D/A dynamic range, converter and output (typical), XLR / aux	118 dB / 112 dB
Crosstalk rejection @ 1 kHz, adjacent channels	100 dB
Output level, XLR connectors (nominal / maximum)	+4 dBu / +21 dBu
Output impedance, XLR connectors (unbalanced / balanced)	75 Ω / 75 Ω
Input impedance, TRS connectors (unbalanced / balanced)	20 kΩ / 40 kΩ
Non-clip maximum input level, TRS connectors	+16 dBu
Aux output level, TRS (nominal / maximum)	+4 dBu / +16 dBu
Aux output impedance, TRS (unbalanced / balanced)	150 Ω / 300 Ω
Phones output impedance / maximum output level	1W Max @ 30 Ohm
Residual noise level, XLR out 1-16 connectors, unity gain	-97 dBu
Residual noise level, aux and monitor TRS out connectors	-95 dBu
Displays
Main screen	10.1" TFT LCD, 1280 x 800 px, capacitive touch
Main screen swivel, continuous adjustment	15°- 60°
4-channel group LCD screen with RGB color strip per channel	320 x 48 monochrome
Controls
Touch-sensitive rotary controls	4
Custom controls	8
Fully assignable rotary controls	4
Fully assignable backlit buttons	8 + 8
Variable rotary controls / buttons	4 / 4
Power
Switch-mode power supply	Auto-ranging 100-240 VAC (50/60 Hz)
Power consumption	130 W
Physical
Standard operating temperature range	5°C – 40°C (41°F – 104°F)
Dimensions (HxWxD)	48.6 x 32.6 x 18.3 cm
Weight	9.44 kg

SKU: 450785
Model #: 450785
Barcode: 930006025116
Brand: Behringer
