Sennheiser XSW-D Pedalboard Set Wireless System 508486 $ 577 $679.00
How to get it Learn More
Store Click & Collect - Available In Stock
Online In Stock
Talk to a specialist

Chat to us or call 5444 8889

Seen a better price?

Find out more

Description

Sennheiser XSW-D Pedalboard Set Wireless System

XS Wireless Digital Pedalboard Set. One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources, with XSW-D 6.3mm (1/4”) transmitter, XSW-D Pedalboard receiver, receiver power supply, extension cable 6.3mm (1/4”), belt clip and USB-C to USB-C charging cable. This elegant solution allows you to play guitar wirelessly and still use a pedalboard, all while maintaining a reliable connection.

  • One touch ease-of-use
  • 2.4 GHz digital transmission for worldwide operation
  • 75m range (250ft) in optimal conditions
  • Up to 5 hours battery life on a single charge
  • Switch between multiple transmitters linked to one receiver
  • Configure any combination of transmitters and receivers
  • Mute from either transmitter or receiver

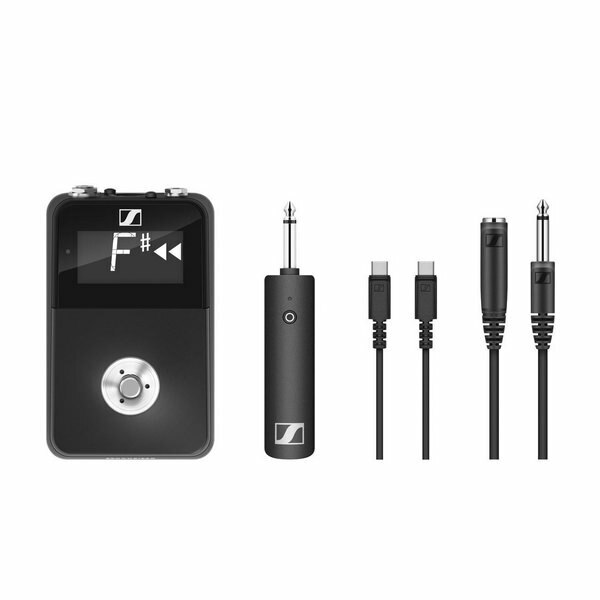

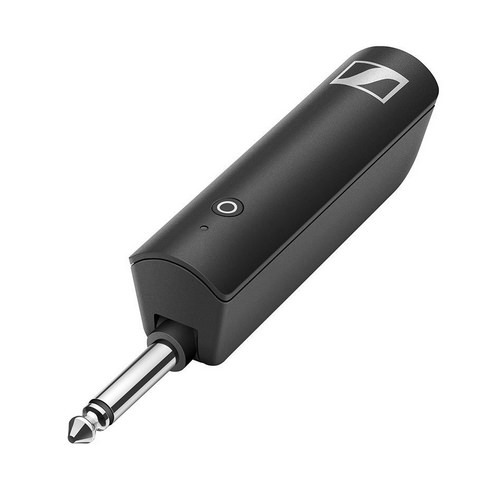

  • XSW-D 6.3mm (1/4”) transmitter

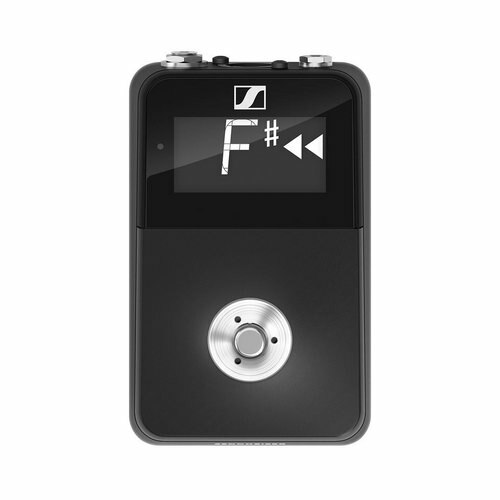

  • XSW-D Pedalboard receiver
  • Receiver power supply
  • Extension cable 6.3mm (1/4”)
  • Belt clip
  • USB-C to USB-C charging cable


Specifications

  • Dimensions
    XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
    XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
  • THD, total harmonic distortion
    < 0.1 %
  • Charging time
    typ. 3 h
  • Audio output
    max. 12 dBu
  • Operating temperature
    -10 °C to +55 °C (14 °F to 131 °F)
  • Signal-to-noise ratio
    ≥ 106 dB
  • Operating time
    up to 5 h
  • Modulation
    GFSK with TDMA
  • Battery Specification
    Li-Ion
  • Capacity
    850 mAh
  • Codecs
    aptX® Live
  • Frequency range
    2,400 - 2,483.5MHz
  • Max. Input voltage
    typ. 5.0 V
  • Transmission power
    max. 10 mW
  • Voltage
    3.7 V
  • Operating relative humidity
    95 % (non-condensing)
  • Latency
    < 4 ms
  • Temperature Range
    0 °C - 60 °C (32 °F - 140 °F)
  • Audio frequency response
    3.5 mm Jack/XLR: 80 - 18,000 Hz
    6.3 mm Jack: 10 - 18,000 Hz
