Description

For decades, Roland has been a leader in electronic percussion technology. The original OCTAPAD was a revolutionary percussion instrument that was adopted by musicians worldwide and set the standard for future percussion pads. With the OCTAPAD SPD-30, an exciting new chapter in Octapad history begins. Combining cutting-edge drum and percussion sounds with the latest triggering technology, a Phrase Loop function, USB MIDI, and much more, the OCTAPAD SPD-30 is a rugged instrument that’s versatile for any musical application.




  • Includes new percussion sounds from around the world, plus 30 types of multi-effects

  • The latest pad-sensing technology developed for V-Drums® provides even and accurate pad triggering with excellent isolation between pads

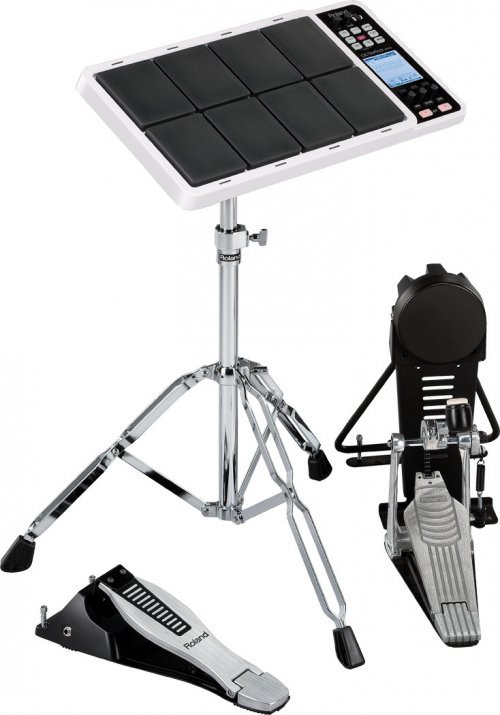

  • Four dual-trigger inputs, plus hi-hat controller for adding pads to create a mini kit, or for connecting triggers from acoustic drums

  • Phrase Loop function inspires your creativity; record your playing in real time and overdub up to three layers

  • USB connectivity for MIDI and memory storage

  • Large backlit LCD and pad indicator lights for easy operation in low-light conditions

  • Rugged, road-worthy design


  •







Upgrade your OCTAPAD with Version 2!





The new Version 2 system upgrade expands the SPD-30's onboard kit and phrase libraries, and adds powerful new features and functions.






  • 99 enhanced preset kits with the best selection of world-percussion sounds

  • Improved control over Phrase Loop functions for live performance

  • Preset Kit Chain for quick access of specific musical sounds and styles

  • Boost your output gain +6dB when a stronger signal is needed


  •





The upgrade is available as a FREE DOWNLOAD from here.





After downloading and extracting the compressed file, please refer to the “SPD30RN200” PDF document included for the update procedure and Version 2.00 features.







World Class Sounds
The OCTAPAD SPD-30 includes more than 600 drum and percussion sounds from around the world suited to cover any musical style. Arranged in 50 kits, the sounds are dynamic and expressive, and range from traditional to contemporary to exotic. You can customize the sounds with the onboard controls for tuning, muffling, attack, pitch sweep, and more. You can also layer two sounds per pad to create an infinite number of sound combinations.





Multi-Effects
Based on Roland’s world-leading effects technology, the SPD-30’s multi-effects engine will take your performances to another level. There are 30 types of internal multi-effects onboard, plus EQ, limiter, and seven Ambience types.

Phrase Loop Function
The onboard Phrase Loop function is a powerful creative tool that lets you quickly record your playing in real time. You can overdub up to three layers per phrase, and store 50 phrases internally. Connect optional footswitches for seamless recording and hands-free operation. You can also save your phrase data to optional USB memory.

Advanced Triggering Technology

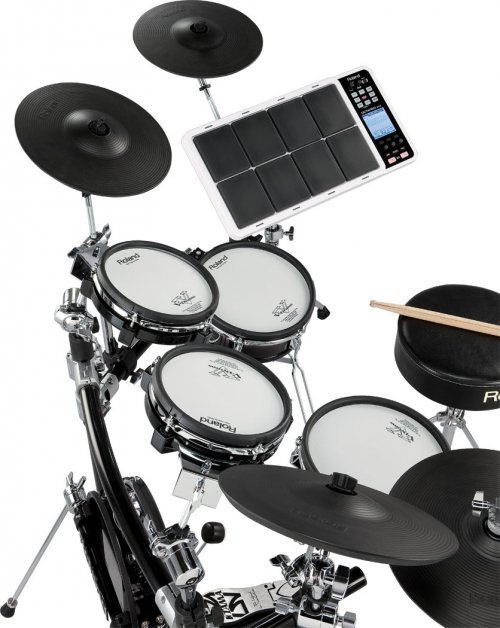

The OCTAPAD SPD-30 benefits from Roland’s most advanced V-Drum triggering technology. Each pad is a separate, isolated unit, providing the ultimate in sensitivity with complete crosstalk rejection. In addition, you can connect four dual-trigger inputs, plus a hi-hat controller (compatible with Roland FD-8, VH-11) to create a mini drum set with external pads (Roland KD-/PD-/PDX-/CY-series). The OCTAPAD SPD-30 is also compatible with Roland RT-Series acoustic drum triggers for even more flexibility.

Specifications

Pads
Built-in Pads: 8
* Four external trigger inputs are provided, allowing you to connect Pads.
Instruments
670
Kits
50
Kit Chain
8 chains (20 steps per chain)
Instrument Parameters
Tuning, Muffling, Soft Attack, Tone Color, Pitch Sweep, Volume, Pan, Reverse
Effect Types
Ambience (7 Types), Equalizer, Limiter, Multi Effect (30 Types)
Phrase Loop
Phrases: 50, Parts: 3, Tempo: 40 to 260, Resolution: 480 ticks per quarter note, Recording Method: Real-time, Maximum Note Storage: approx. 10,000 Notes
Display
160 x 160 dots Graphic Type LCD (Backlit LCD)
Pad Status Illumination x 8 (LED)

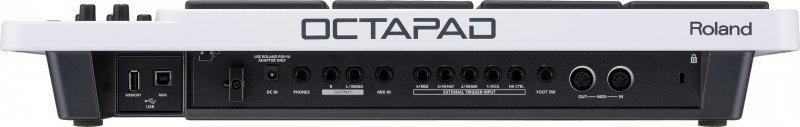

Connectors
PHONES Jack (Stereo 1/4 inch phone type), OUTPUT Jacks (L (MONO), R) (1/4 inch phone type), MIX IN Jack (Stereo 1/4 inch phone type), EXTERNAL TRIGGER INPUT Jacks x 4, HH CTRL Jack, FOOT SW Jack (1/4 inch TRS phone type), MIDI Connectors (IN, OUT), USB MEMORY Connector (for USB Memory), USB MIDI Connector (for USB MIDI)
Output Impedance
1.0 k ohms
Power Supply
AC Adaptor (DC 9 V)
Current Draw
600 mA
Accessories
Owner's Manual, AC Adaptor (PSB-1U), Screws (M5 x 12 mm) x 4
Options
Pads (PD series, PDX series), Cymbals (CY series), Kick Triggers (KD series), Hi-Hats (VH-11), Hi-Hat Control Pedal (FD series), Pad Stand (PDS-10), All-Purpose Clamp (APC-33), Acoustic Drum Trigger (RT-10K, RT-10S, RT-10T), Pedal Switch (DP-2), Foot Switch (FS-5U, FS-6), Personal Drum Monitor: PM-10, PM-30, V-Drums Accessory Package: DAP-3, V-Drums Mat: TDM-10,
USB memory
* Use USB memory sold by Roland. We cannot guarantee operation if other
products are used.
Size and Weight
Width
541 mm
21-5/16 inches
Depth
272 mm
10-3/4 inches
Height
88 mm
3-1/2 inches
Weight
3.8 kg
8 lbs. 7 oz.
Weight exclude AC Adaptor.
In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
