Description

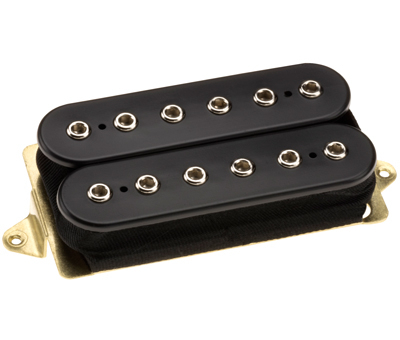

DiMarzio DP216FB Mo Joe Humbucker Pickup F-Spaced Black

Joe Satriani has used FRED® as his main bridge pickup for years. In 2005, Joe asked us for a hotter and bigger version to replace the FRED® in his new Ibanez® guitars. The new model called the Mo’ Joe™ is all about tone and definition. Its name says it all. It has more power than FRED® but it doesn’t sacrifice clarity or dynamics. Additionally, all the harmonics that made FRED® so good are all there ready to jump out at the touch of a guitar pick. Having more output makes the Mo’ Joe™ a perfect match for the PAF Joe™ in the neck position. The combination delivers great versatility and control from rhythms to solos.

F-spaced pickups measure 2.01" (51 mm) center-to-center from the first polepiece to the sixth. Standard-spaced pickups measure 1.90" (48 mm). Although some players believe that F-spaced pickups are only for the bridge position of tremolo bridge guitars, many guitars with fixed bridges (including post-1998 Gibson® and Epiphone® Les Paul®, SG® and semi-hollow guitars) should have F-spaced pickups in the bridge position. Most tremolo equipped guitars that have a nut width of 1-11/16” (43mm) or more should also use an F-spaced pickup in the neck position. If you’re replacing a bridge-position pickup and you're not sure what your string-spacing is, it's usually better to get an F-spaced model. It is not necessary for the strings to pass exactly over the center of the polepieces for best performance, but it is wise to avoid a situation where the E strings are sitting completely outside of the outer polepieces.

Recommended For

Bridge position, solid and semi-hollow body guitars

Tech Talk

The last few years have seen Joe develop a new signature tube amp and start using heavier-gauge strings more often. Both developments emphasized the importance of the Mo’ Joe™ having a high degree of string separation without sounding sterile or processed. We got this by slightly increasing the distance between the center frequencies that the coils are tuned to, without increasing DC resistance. The result is a pickup that’s both hotter and more articulate. Mo’ Joe is used by permission of Mojo Musical Supply, with whom DiMarzio, Inc. is not affiliated.

Download Installation Instructions
Find the right wiring diagram for your guitar

Specs

Wiring: 4 Conductor
Magnet: Alnico 5
Output mV: 320
DC Resistance: 9.76 Kohm
Year of Introduction: 2006
Patent: 4501185

Pickup Dimensions

Tone Guide

Treble: 5.0

Mid: 5.5

Bass: 5.0
